BD-D664-264B Automatic Total Acid Number Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D664-264B
Acid Number Measuring Range:
≥0.05 MgKOH/g
Potentiometric Measurement:
0 ~ 1800.0mV
Capacity Of Burette:
10mL
Minimum Titration Volume:
0.02mL
Precision Of Burette:
±0.1%F•S
Power Supply:
AC(220±11)V , 50±1Hz
Highlight:
Total Acid Number Tester
,Automatic Total Acid Number Tester
,BD-D664-264B Tester
Product Description

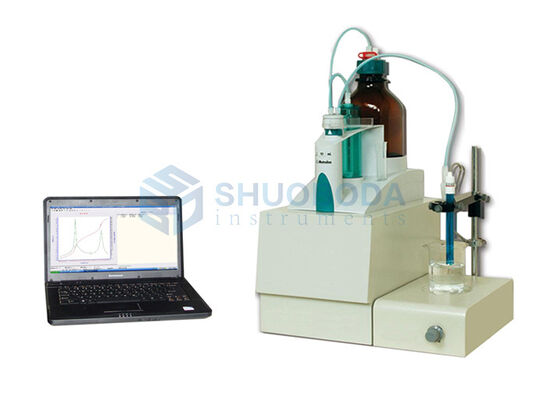

BD-D664-264B Automatic Total Acid Number Tester
The BD-D664-264B Automatic Total Acid Number Tester uses the potentiometric titration method to accurately measure acid values in various petroleum products. By recording electrode potential and titration volume, it determines the equivalence point and corresponding titrant volume to calculate sample pH values.
This instrument is specifically designed for detecting acid values in transformer oil, turbine oil, anti oil, diesel, gasoline, and other petroleum products. Widely used in chemical, power, and oil industries, it serves as an ideal solution for current meter acid number testing of petroleum products.
Standards Compliance: GB/T264, GB7599-87, GB/T7304-2000, GB/T 18609-2001, ASTM D664-2011
Key Features
- Special operation software with English Windows interface for easy operation
- High resistance input ensures stable and reliable signal transmission
- Real-time display of titration curves and test results
- Test results can be saved as Word documents
- Process data can be exported as Excel files
- Comprehensive printing capability for curves, results, and data
- Automatic liquid compensation and value setting
Technical Specifications
- Acid number measuring range: ≥0.05 mgKOH/g
- Potentiometric measurement: (0 ~ 1800.0)mV
- Burette capacity: 10mL
- Minimum titration volume: 0.02mL
- Burette precision: ±0.1%F•S
- Instrument precision: Meets relevant standard test methods
- Power supply: AC(220±11)V, 50±1Hz
- Ambient temperature: 5°C~35°C
- Relative humidity: ≤80%
- Dimensions: 350mm*280mm*178mm (PC not included)
- Net weight: 14Kg (PC not included)
Standard Accessories
| No. | Item | Unit | Qty | Remarks |
|---|---|---|---|---|
| 1 | PC | Set | 1 | Brand commercial PC machine (also available for user selection) |
| 2 | Magnetic stirrer | Set | 1 | |
| 3 | Stirrer pole | Piece | 1 | |
| 4 | Stirrer electrode holder | Piece | 1 | |
| 5 | Magnetic stirrer | Piece | 4 | |
| 6 | RS232 serial communication lines | Piece | 1 | |
| 7 | Shorting Plug | Piece | 2 | |
| 8 | Fuse (1.5 ~ 2A) | Piece | 2 | Load power outlets |
| 9 | 231 glass pH electrode | Piece | 2 | |
| 10 | 802 saturated mercury electrode | Piece | 2 | |
| 11 | Titration exchange unit (10mL) | Set | 1 | Imported with original packaging |
| 12 | Stirrer power supply (9V) | Piece | 1 | |
| 13 | 5ml (or 10ml) Syringe | Piece | 1 | |
| 14 | 9 special long needle injection | Piece | 1 |
