DP-CA-15H Texture Analyzer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-CA-15H
Load Force Range:
0–50 Kg (Selectable Options: 1, 5, 10, 25, 30, 50 Kg)
Load Force Detection Accuracy:
≤ ±0.01% FS (Full Scale)
Load Force Resolution:
Standalone Version: 0.001 G; PC-Connected Version: 0.0001 G
Test Speed:
0.001 Mm/s – 40 Mm/s
Speed Accuracy:
≤ ±0.1%
Deformation Displacement Range:
0–310 Mm Or 0–410 Mm (Two Models Available)
Highlight:
texture analyzer with warranty
,DP-CA-15H texture analyzer
,food texture testing equipment
Product Description

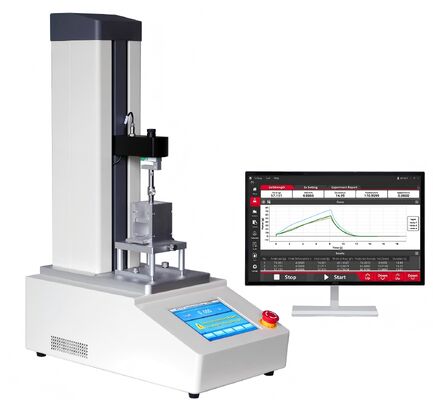

DP-CA-15H Texture Analyzer
The DP-CA-15H Texture Analyzer is a precision instrument designed for comprehensive physical property analysis across multiple industries including food, pharmaceuticals, cosmetics, and materials science.
Operating Modes
- Standalone Operation: Features an 8-inch high-definition touchscreen for direct instrument control, ideal for rapid testing and on-site analysis without computer dependency
- PC-Connected Operation: Enables connection to dedicated software for advanced parameter configuration, precise measurement control, rapid data acquisition, and professional analysis
Applications
Used for physical property analysis of samples in food, pharmaceuticals, tobacco, dairy products, meat products, cosmetics, gels, confectionery, fruits and vegetables, and seafood. Quantitatively determines multiple physical property indicators including hardness, brittleness, tenderness, adhesiveness, elasticity, toughness, cohesiveness, chewiness, gel strength, tensile strength, rupture strength, shear strength, compressive strength, puncture strength, creep characteristics, and stress relaxation characteristics.
Technical Specifications
| Display Interface | 8-inch high-definition capacitive touchscreen |
| User Management | Hierarchical permission management system supporting multiple user levels and accounts |
| Data Security | Automatic audit trail generation with secure database storage |
| Load Force Range | 0-50 kg (Selectable options: 1, 5, 10, 25, 30, 50 kg) |
| Load Force Detection Accuracy | ≤ ±0.01% FS (Full Scale) |
| Load Force Resolution | Standalone Version: 0.001 g; PC-Connected Version: 0.0001 g |
| Test Speed | 0.001 mm/s - 40 mm/s |
| Speed Accuracy | ≤ ±0.1% |
| Deformation Displacement Range | 0-310 mm or 0-410 mm (Two models available) |
| Displacement Resolution | 0.0001 mm |
| Data Acquisition Rate | 4000 sets/second (PC-Connected Version offers selectable rates from 50 to 4000 sets/second with custom settings for research applications) |
| Safety Features | Emergency stop, upper/lower limit control, overload protection, test data encryption |
| Test Modes (Standalone) | ≥11 modes including TPA, Tensile Test, Compression Test, Gelatin Bloom Strength, Carrageenan Test, Agar Strength, Surimi Elasticity, and accuracy verification tests |
| Data Interfaces | RS232 Serial Port, Standard USB Port |
| Dimensions (L×W×H) | 560 × 330 × 800 mm |
| Weight | 27 kg |
Software Features
- Comprehensive test mode programming with functions for running, presetting, repeating, looping, clearing, zeroing, value assignment, variables, formulas, calculations, playback, comparison, and annotations
- Graphical display and editing of Force-Time, Force-Distance, Distance-Time, and Stress-Strain curves with zoom capabilities and automatic area calculation
- Video and image capture functionality for synchronized recording of testing processes with traceable database storage
- Test playback with intelligent retrieval for data restoration, curve reconstruction, and synchronized video analysis
- Simultaneous comparison of up to 15 different test results
- Comprehensive results output in Excel, Word, and PDF formats
- User-friendly interface with menu bar, toolbar, status bar, display panel, and curve window
- Dual-language operating system (Chinese and English) with one-click switching
- Extensive test method library with over 20 distinct testing methods and unlimited custom mode creation
- Metrological verification module with automated verification, calibration, and self-repair capabilities
- Robust technical support with comprehensive help system, sample routines, methodologies, and instructional resources
The software holds copyright certification from the National Copyright Administration of China ("Texture Analyzer Operation and Analysis Software V1.7") and facilitates quantitative assessment correlating human sensory perceptions with instrumental measurements for accurate reference data on shelf life, freshness, textural quality, and other sample characteristics.
Compliance Standards
- Chinese Pharmacopoeia, 2025 Edition
- Current Chinese GMP regulations
- GB 6783-2013: Food Additive Gelatin
- GB 13731: Hard Gelatin Capsules for Medicinal Use
- GB 28304-2012: Food Additive Gelatin – Curdlan
- GB/T 36187-2018: Frozen Surimi
- QB/T 4087-2010: Edible Gelatin
- NY/T 1180-2006: Determination of Meat Tenderness – Shear Force Method
- YQ-GY/T 7.1--2023 through YQ-GY/T 7.5--2023: Testing of Physical Properties of Flue-cured Tobacco Leaf
- AACC 74-09: Bread Firmness Test (American Association of Cereal Chemists)
- AOAC (Association of Official Analytical Chemists / American & European Gelatin Associations)
