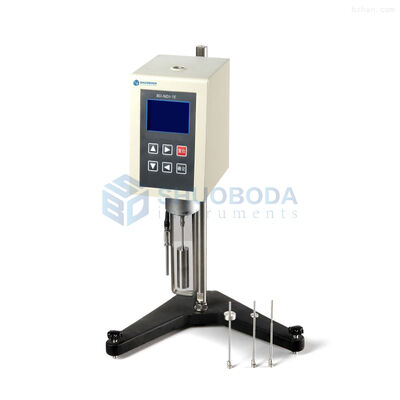

BD-NDJ-1E Digital Rotational Viscometer, Viscosity Meter
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-NDJ-1E
Measurement Range:
(1 ~ 6000000)mPa•s
Spindle:
No.0 ~ No.4，five Kinds Of Spindles
Spindle Speed:
(0.1,0.2,0.3,0.6,1.5,3,6,12,30,60,120)r/min
Accuracy:
±1% (F.S);
Print Output:
Needle Printer
Communication With The PC:
RS232 Interface
Highlight:
digital rotational viscometer with warranty
,viscosity meter for lab use
,rotational viscometer with digital display
Product Description
BD-NDJ-1E Digital Rotational Viscometer, Viscosity Meter
The BD-NDJ-1E Digital Rotational Viscometer is an upgraded instrument that combines advanced mechanical design technology, precision manufacturing techniques, and microcomputer technology for accurate data collection. Featuring a white backlight and ultra-bright LED display, it provides clear visibility of measurement data. With a dedicated printing interface, it can output measurement data via printer and is suitable for determining absolute viscosity of Newtonian liquids and apparent viscosity of non-Newtonian liquids.
Applications
Widely used for viscosity measurement of various liquids including greases, oil paints, plastics, pharmaceuticals, dopes, adhesives, detergents, and more.
Key Features
- Advanced mechanical design and manufacturing processes with microcomputer-controlled speed, data collection, and processing
- White backlight with high-brightness LCD display showing viscosity, rotor number, speed, and other parameters
- Real-time data display with printer output capability and RS232 communication port for PC connectivity
- Multiple models available for different measurement ranges and sample types
Technical Specifications
| Measurement Range | 1 ~ 6,000,000 mPa•s |
| Spindles | No.0 ~ No.4 (five spindles) |
| Spindle Speed | 0.1, 0.2, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60, 120 r/min (stepless speed regulation available) |
| Accuracy | ±1% (F.S) |
| Print Output | Needle printer |
| PC Communication | RS232 interface |
| Power Supply | AC 220 V±10%, 50 Hz±10% (24V adapter) |
| Operating Temperature | 5°C ~ 35°C |
| Relative Humidity | ≤80% |
Optional Accessories
- Circulating constant temperature water bath
- Double-layer sample cup
- Small sample adapter
