RV-NDJ-8S Rotational Viscometer, Viscosity Meter
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
RV-NDJ-8S
Measurement Range:
10 MPa·s ~ 2000000 MPa·s
Spindle:
No.1 ~ No.4, Total Four Spindles
Rotation Speed:
0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM,12 RPM, 30 RPM, And 60 RPM, 8 Grades In Total
Temperature Range:
0~200°C.
Measuring Accuracy:
±1% (F·S)
Power Supply:
AC 220 V±10%, 50 Hz±10%
Highlight:
rotational viscometer viscosity meter
,RV-NDJ-8S rotational viscometer
,rotational viscometer with warranty
Product Description

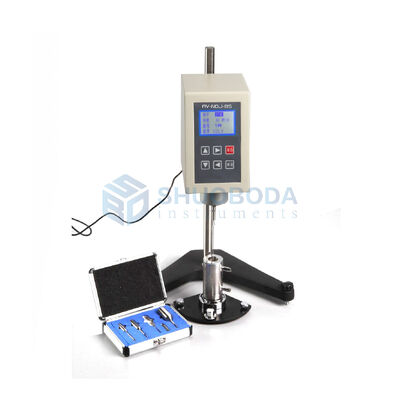

RV-NDJ-8S Rotational Viscometer, Viscosity Meter
The RV-NDJ-8S Rotational Viscometer is an upgraded instrument featuring advanced mechanical design technology, precision manufacturing techniques, and microcomputer control technology for accurate data collection. Equipped with white background lighting and an ultra-bright LCD display, it clearly shows test data and is widely used for viscosity measurement in grease, paint, plastics, medicine, coatings, adhesives, detergents, and other fluids.
Key Technical Features
- Advanced mechanical design and manufacturing processes with microcomputer-controlled speed, data collection, and processing
- Accurate data acquisition, high sensitivity, reliable test results, user-friendly operation, and attractive design
- White backlight with high-brightness LCD display showing sample viscosity, rotor number, speed, and other information
- Multiple model options available for different measurement ranges and sample types
Technical Specifications
| Measurement Range | 10 mPa·s ~ 2,000,000 mPa·s |
| Spindles | No.1 ~ No.4 (four spindles total) |
| Rotation Speed | 0.3, 0.6, 1.5, 3, 6, 12, 30, and 60 RPM (8 grades total) |
| Temperature Range | 0~200°C |
| Measuring Accuracy | ±1% (F·S) |
| Power Supply | AC 220 V±10%, 50 Hz±10% |
| Ambient Temperature | 5°C ~ 35°C |
| Relative Humidity | ≤80% |
Optional Accessories
- BD-SPB-10 Circulatory Water Bath
- Special Double-Layer Sample Cup
- No.0 Spindle (Low Viscosity Adapter)
