5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
5L Lab Spray Dryer
,Inert Loop Lab Spray Dryer

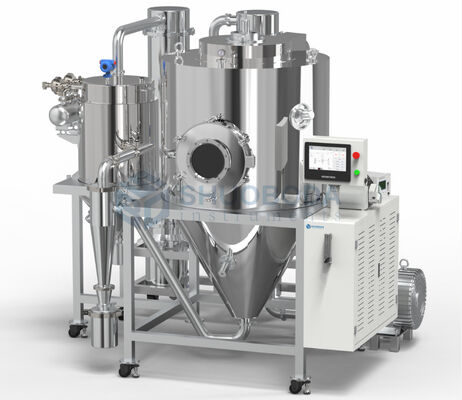

SPD-H5O Lab Inert Loop Spray Dryer for Organic Solvents & Solution Recovery, 5L
SPD-H5O Lab Inert Loop Spray Dryer is specially for organic solvents, the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recovering products, organic solvents can also be recovered.
This closed-loop spray system is specially designed for the low flash point or slightly toxic, flammable and explosive characteristics of organic solvents. It is an ideal closed-loop dryer for laboratory small-scale to pilot-scale tests, and provides a new and reliable method for drying laboratory organic solvents, toxic materials and easily oxidizable materials.
|
Capacity |
5000ml/h |
Range |
30-250℃ |
Gas |
N2 |
Technical Parameters
|
No. |
Item Name |
Specifications |
|
1. |
Inlet air temperature |
30~250℃(accuracy ±0.5℃) |
|
2. |
Minimum feed amount |
50ml |
|
3. |
Drying time |
0.8s~1.0s |
|
4. |
Feed speed |
50~5000ml/h |
|
5. |
Atomization structure |
Electric centrifugal atomizer |
|
6. |
Oxygen measurement system detection range |
0-100%(accuracy 0.1) |
|
7. |
Oxygen detection module |
Ensure that the oxygen concentration is below 3% before feeding (value can be set) |
|
8. |
Pressure measurement system range |
0-100Kpa |
|
9. |
Explosion-proof module |
Automatic pressure relief above 3Kpa (value can be set) |
|
11. |
Explosion-proof membrane |
Automatic type |
|
12. |
Air volume adjustment |
0-320 m3/h arbitrary adjustment (variable frequency fan) |
|
13. |
Heating power |
10kw |
|
14. |
Overall machine size |
1600*1400*2100mm |
|
15. |
Power supply |
380V |
Products gallery
spray dryer drying samples
applications
