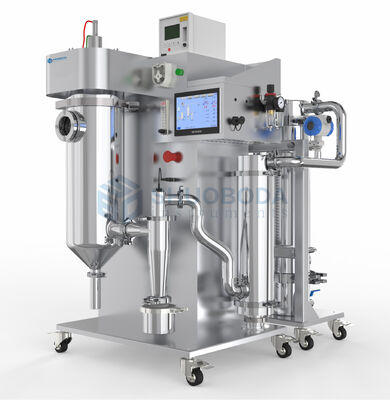

2000ml/h Lab Spray Dryer For Organic Solvent SPD-OMINI
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
2000ml/h Lab Spray Dryer
,Organic Solvent Lab Spray Dryer
SPD-OMINI Spray Dryer for Organic Solvent, 2000ml/h
Especially for organic solvents, an inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recycled products, organic solvents can be recovered.
The closed cycle spray system is specially designed for the characteristics of low flash point or slight toxicity of organic solvents, inflammable and explosive. It is an ideal closed cycle dryer from small laboratory test to pilot test level. It provides a new and reliable method for drying organic solvents, toxic materials and easily oxidized materials in the laboratory.
Clear Human Interface
Main features
Technical Specifications
|
The maximum amount of water evaporated |
2000ml/h |
|
Intake air temperature |
30~250℃(±0.5℃) |
|
Outlet air temperature |
30~100℃(±0.5℃) |
|
Electric heater |
3.0 KW/AC220V; Material: 2520 special stainless steel |
|
Inlet and outlet air temperature monitoring |
Taiwan PT-100 platinum resistor, intelligent PID control |
|
Spray system |
American brand atomizer, 0.7mm diameter two- fluid atomizer (Optional caliber: 0.4mm; 1.5mm) |
|
* Cloth bag filter device |
main material is stainless steel, built-in stainless steel folding high efficiency filter element |
|
Drying time |
0.8s~1.5s |
|
Feed rate |
50~2000ml/h |
|
Atomizing atomizer automatic plugging device |
Automatic needle frequency is adjustable, 0 ~ 60 seconds/time (manual needle function is also available) |
|
Control system |
Germany Siemens PLC automation control system; Imported 7 inch color touch screen |
|
Oxygen measuring system detection range |
0-100% |
|
Software version |
Independent intellectual property rights OS 1.0, visual touch operation; Display and control the inlet air temperature, outlet air temperature, frequency conversion and needle frequency; Data recording and export, curve analysis function, alarm and overload protection |
|
Oxygen detector module |
Ensure that the oxygen concentration is below 3% before starting feeding (the value can be set) |
|
Pressure measuring system range |
0-100Kpa |
|
Explosion-proof module |
Automatic pressure relief above 3Kpa (value can be set) |
|
Bursting disk |
Automatic type |
|
Air blower |
Delta variable frequency governor, imported fan, 0-70m³/h arbitrary adjustment (variable frequency fan) |
|
Drying tower size |
φ204*640mm(H) |
|
Filter recovery size |
Φ133*550mm(H) |
|
Condensing unit size |
φ159*830mm(H)X2 |
|
Quick removal design |
Thermometers, air lines, power supplies, all use quick-plug design |
|
option |
Magnetic stirrer, weighing system, etc |
|
Power source |
220V；50Hz |
|
Overall size |
L*W*H=1000*1000*1200mm |
|
Gross weight |
140KG |
Brands
|
atomizer |
Spray |
|
Peristaltic pump |
Durable |
|
Air blower |
Dagang |
|
Fan converter |
Delta |
|
PLC control system |
Siemens |
|
PT100 temperature electrode |
Twidec |
|
PT100 Aviation plug |
Twidec |
|
Electrical components: air switch, Relays, switch buttons, etc |
Schneider |
|
HMI |
Weinview |
Advantages
|
Ø atomizer cleaner (through needle) is provided, when the atomizer is blocked, it will be automatically cleared, and the frequency of the through needle can be automatically adjusted |
|
Ø Closed nitrogen circulation, saving the amount of gas used, experimental safety, prevent sample oxidation |
|
Ø High-precision oxygen measurement system, according to the level of oxygen concentration automatically control the feed start and stop, the safety of the experiment |
|
Ø Sensitive pressure measuring system and automatic pressure relief, space pressure safety |
|
Ø The spray head is concentric and atomized to ensure that there is no eccentricity causing spray to one side of the bottle wall |
|
Ø Filter system In order to maintain the purity of the sample, the air inlet filter is equipped |
|
Ø Multi-stage porous solvent condensation system to improve solvent recovery |
|
Ø The upgraded atomization system effectively solves the problem of adhesion of some viscous materials in the cyclone separator |
|
Ø Frequency conversion fan, control the amount of air in and out, reduce the loss of fine materials |
|
Ø The drying tower vortex separator can be split and cleaned to solve the problem of difficult cleaning |
|
Ø 7 inch LCD touch screen, temperature curve memory function, real-time monitoring, the whole machine is made of stainless steel |
|
Ø Just press the stop button when shutting down, and the machine will stop running immediately except for the fan to ensure that the heating part of the equipment will not be burned out due to misoperation |
|
Ø Self-produced nitrogen generator can be selected to reduce the frequency of use of nitrogen cylinders |
|
Ø After drying, the particle size of the finished dry powder is more uniform, and more than 95% of the dry powder is in the same particle size range |
Optional
Packing List
|
Mini host |
ü |
|
SPRAY atomizer (0.7mm caliber) |
ü |
|
Stainless steel drying chamber (with window) |
ü |
|
Stainless steel cyclone separator |
ü |
|
Cloth bag filter device |
ü |
|
Product receiving container |
ü |
|
Two condensing units |
ü |
|
Cyclone demister |
ü |
|
Drying tower body seal ring |
ü |
|
Small collection bottle drying chamber seal ring |
ü |
|
Oxygen analyzer |
ü |
|
manometer |
ü |
|
Safety valve |
ü |
|
Stainless steel pipe |
ü |
|
Stainless steel hose |
ü |
|
clamp |
ü |
|
PT100 temperature sensor with quick disconnector |
ü |
|
Silicone tube |
ü |
|
Air belt quickly remove the head |
ü |
|
Air compressor |
ü |
|
Portable disassembly tool |
ü |
|
Product identification |
ü |
|
Factory inspection report |
ü |
|
Certificate of conformity |
ü |
|
User manual |
ü |
|
After-sales service manual |
ü |
spray dryer drying samples
applications
