TLD-410 Personal TLD Albedo Neutron Dosimeter Multifunctional Badge Style
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/week |
Albedo Neutron Dosimeter Multifunctional
,TLD Albedo Neutron Dosimeter
,Personal Albedo Neutron Dosimeter

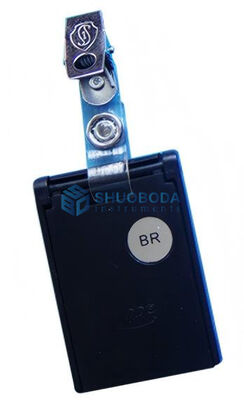

TLD-410 Personal TLD Albedo Neutron Dosimeter
Product introduction
The TLD-410 Personal TLD Albedo Neutron Dosimeter is a multifunctional badge-style TLD albedo neutron personal dosimeter. It uses a combination of 6LiF and 7LiF thermoluminescent detectors to measure neutron and gamma radiation doses, including slow and intermediate-energy neutron doses in mixed fields.
The dosimeter has four internal slots to accommodate thermoluminescent detectors of various shapes and sizes. These configurations can be used to measure X-ray, gamma, beta, and neutron doses. The dosimeter is mounted using a hanging card and is numbered with a self-adhesive barcode.
For neutron and gamma radiation dose measurements, two thermoluminescent detectors are required to distinguish neutrons from the mixed field. One thermoluminescent detector is neutron-sensitive and the other is insensitive. For example, 7Li is insensitive to neutrons but only to gamma rays, while 6Li is sensitive to both.
Technical Specification
|
Item |
Parameters |
|
TLD detector energy range |
20 keV～3MeV |
|
CR-39 solid state track detector exposure range |
10mR～103R |
|
Total uncertainty
|
≤±30%; ≤±50% for energies ≤30 keV or exposures ≤40 mR. |
|
Energy response |
uncertainty -10%; +25% |
|
Directivity |
Uncertainty ≤±10% for energies >100 keV; Uncertainty ≤±20% for energies ≤100 keV. |
|
Dispersion |
uncertainty≤±8% |
|
Degradation and optical effects |
uncertainty≤±5% |
|
Scale |
uncertainty≤±10% |
