Smart Pen Personal Radiation Dosimeter Room Temperature Semiconductor Detector
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/week |
Pen Personal Radiation Dosimeter
,Smart Personal Radiation Dosimeter
,Room Temperature Semiconductor Detector

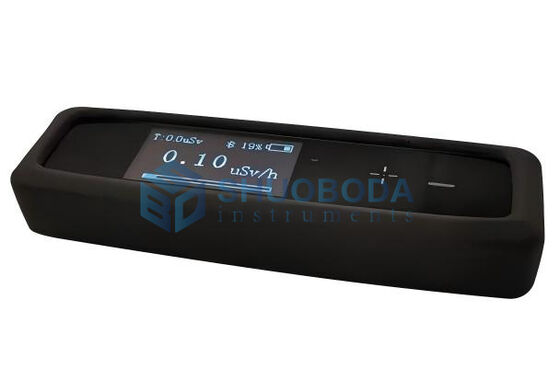

Smart pen personal radiation dosimeter
Product Description
The personal radiation dosimeter uses a new room-temperature semiconductor detector with high sensitivity and a wide detection range—Cadmium Zinc Telluride (CdZnTe, CZT) radiation detector. It is a gentle, lightweight, and easy-to-carry monitoring instrument with real-time radiation dose rate monitoring, cumulative dose monitoring, 4G and Bluetooth wireless data communication, GPS/Beidou data positioning, settable alarm thresholds, and combined light and vibration alarms.
Standards
Complies with the standard: GB/T 13161-2015 "Radiation protection instruments for measuring personal dose equivalents of X-ray, gamma, neutron and beta radiation - Direct-reading personal dose equivalent meters" (10 Hp and 0.07).
Application areas:
Detecting X-ray intensity in medical and industrial X-ray machines;
Hand monitoring during interventional surgery in hospitals;
Personal radiation monitoring in drug dispensing and packaging workplaces;
Large-scale security, radiation, safety and positioning data management for security personnel and key personnel;
Radiation monitoring for personnel in scientific research facilities involving X-ray and gamma ray sites.
Features:
Integrated 4G, Beidou and Bluetooth;
Continuous monitoring for nearly 8 days, always on guard;
Multiple alarms: vibration, light, sound, etc., with support for custom thresholds;
Type-C charging for convenience and speed.
Technical parameters
|
Item |
Specification |
|
Detector |
Third-generation semiconductor - Cadmium Zinc Telluride (CdZnTe) + photoelectric sensor |
|
Test items |
X and γ rays |
|
Sensitivity |
1.9 cps/(uSv/h) 137Cs |
|
Energy range |
30 keV ~3 MeV |
|
Dose rate range |
0.01 uSv/h ~ 20 mSv/h |
|
Accumulated dose range |
0 ~ 1Sv |
|
Relative inherent error |
≤ +20% (137Cs, 662 keV) |
|
Statistical fluctuation |
≤5% |
|
Response time |
3s |
|
Communications |
Bluetooth, 4G |
|
Positioning |
Beidou, GPS, LBS |
|
Power supply |
Built-in rechargeable lithium battery |
|
Battery life |
≥ 200h |
|
Temperature Range |
-20°C to +40°C |
|
Relative Humidity |
≤95% (35°C, non-condensing) |
|
Material |
PC + Acrylic |
|
Dimensions |
100 × 27 × 15mm |
|
Weight |
55g |
