DA-100 Small Personal Radiation Dosimeter For X Ray Gamma Ray
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 5000 sets per month |
Small Personal Radiation Dosimeter
,Gamma Ray Personal Radiation Dosimeter
,X Ray Personal Radiation Dosimeter

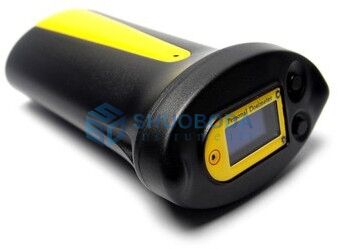

DA-100 Personal Radiation Dosimeter for X-ray, gamma-ray
Product introduction
DA-100 X-ray, gamma-ray Personal Radiation Dosimeter is a small and highly sensitive personal radiation dose alarm device. The instrument uses GM counting tube as the detector, which has a fast response speed and adopts powerful single-chip microcomputer technology, which has strong anti-interference ability. It is mainly used to monitor X, γ rays and hard β. Within the measurement range, the alarm threshold can be set. When the alarm threshold is reached, an alarm will be issued to remind the staff to pay attention to safety.
Features
1. Adopt energy compensation GM tube, accurate indication and fast response.
2. OLED display, dose rate LED strobe indication, simple operation and clear indication.
3. Dose rate, cumulative dose, blocking fault and other alarm functions, any combination of sound, light and vibration alarm modes.
4. Alarm threshold can be set arbitrarily within the range.
5. Alarm data is automatically stored for easy query.
6. Optional wireless networking to achieve centralized management of personal dose
Technical parameters
|
Item |
Specification |
|
Detector |
Energy compensated GM counter tube |
|
Sensitivity |
>1.5CPS/uSv/h (relative to 137Cs) |
|
Measuring range |
Dose equivalent rate: 0.01μSv/h～1mSv/h; Cumulative dose equivalent: 0.00μSv～999.9Sv |
|
Energy response |
48keV～3.0MeV |
|
Relative error |
<5% (at 1mSv/h) |
|
Power Consumption |
2 AAA dry batteries |
|
Temperature range |
-10℃～+50℃≤±10% |
|
Humidity |
0～95%RH(+35℃)≤±10% |
|
Dimensions |
70*40*95 (mm) (length*width*height) |
|
Weight |
100g (including battery) |
