DHC75 Shielded Cells for Synthesis Modules
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DHC75
Front:
75mm Pb
Shielding On Other Surfaces:
60mm Pb
Highlight:
DHC75 shielded synthesis cells
,radiation testing synthesis modules
,shielded cells for radiation testing
Product Description

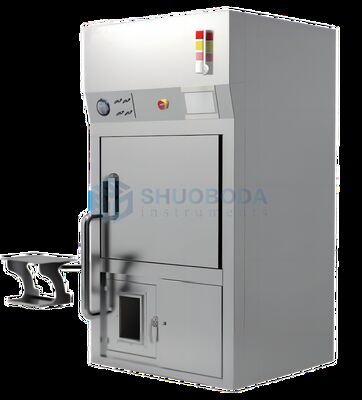

DHC75 Shielded Cells for Synthesis Modules
Product Overview
The DHC75 shielded cells for synthesis modules feature a completely isolated protection design with an easy-to-clean arc-shaped stainless steel inner cavity, specifically engineered for PET synthesis of positron radiopharmaceuticals.
Chamber Design & Configuration
The hot chamber consists of three distinct functional areas:
- Control Area: Upper section with independent ventilation system, control unit, radioactive gas stop valve, and internal radiation dose monitoring with interlock safety
- Working Area: Central section accessible via front screen door, designed with large internal dimensions to accommodate all market-available synthesizers
- Auxiliary Area: Lower section providing additional functional support for chamber operations
Compliance & Safety Standards
High-standard lead shielding and biological cleanliness ensure GMP clean pharmaceutical environment compliance and meet ICRP radiation safety standards for PET radiopharmaceutical synthesis.
Main Features
- Compatible with conventional nuclides
- 304 stainless steel interior and exterior construction
- Highly integrated control and display system for simplified operation
- Real-time internal radiation dose level display with safety interlock warnings
- High negative pressure synthesis environment
- Compatible with multiple synthesis modules
- Optional digital negative pressure sensor
- HD camera system
- Screen playback support
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | DHC75 |
| Front Shielding | 75mm Pb |
| Other Surface Shielding | 60mm Pb |
| Air Exhaust | 100% |
| Noise Level | < 50dB |
| Wind Speed | > 1.2m/sec |
| Working Area Dimensions | 900mm W × 640mm D × 680mm H |
| External Dimensions | 1250mm W × 1200mm D × 2400mm H |
| Weight | 3.8 tons |
| Power Supply | 220V 50Hz 10A |
Standard Accessories
- Fan unit
- Lighting lamps, ozone emitter sterilization facilities, airtight power sockets
- Wide angle camera
- Four-way gas pipeline
- Target line sealer
- Over-the-line sealer
- Synthetic module tray
