FH-20Pb Fume Hood for SPECT
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
FH-20Pb
External Dimensions:
External Dimensions: W1050*D750*H2200mm
Inner Size:
800W*550D*620mmH
Highlight:
SPECT fume hood FH-20Pb
,radiation testing fume hood
,laboratory fume hood for SPECT
Product Description

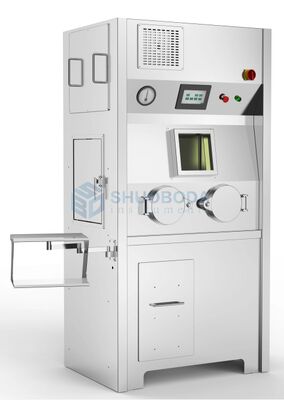

FH-20Pb Fume Hood for SPECT
Product Overview
The FH-20Pb Fume Hood for SPECT is engineered for nuclear drug dispensing operations, featuring a three-part design with the control area positioned at the top. Equipped with an independent full exhaust air purification unit and high-efficiency air filter, this system ensures optimal safety and performance.
Design Features
The control panel features a 15° inward tilt for enhanced operator visibility and accessibility. Below the observation window are two hand holes with diameters exceeding 160mm, protected by 200mm covers that provide equivalent shielding to the main enclosure.
Constructed with oil-brushed 304 stainless steel exterior and clean arc-cornered mirror panel 304 stainless steel interior, the unit offers both durability and easy cleaning with excellent reflectivity for clear observation.
Key Features
- Designed for SPECT-CT nuclear drug dispensing operations with Class A (ISO 100) purification level
- Intelligent AI human-machine interactive control platform for non-contact operation of lighting, sterilization, ventilation, and safety systems
- Clean arc mirror stainless steel inner cavity with vertical laminar flow and negative pressure ventilation
- R15 arc corners and smooth surfaces for easy cleaning and maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| External Dimensions | W1050 × D750 × H2200mm |
| Internal Dimensions | W800 × D550 × H620mm |
| Lead Equivalent | 20mmPb on all surfaces (front, sides, bottom, back) |
| Observation Window | Lead glass with 20mmPb equivalent shielding |
| Operating Hand Holes | Two holes with 20mmPb equivalent protection and locking covers |
Additional Features
Electric lifting device for molybdenum-technetium generator protection
Adjustable height lifting platform for activity meter ionization chamber
Integrated dose monitoring display with real-time radiation level monitoring
Multi-diameter sealing system for cable management and radiation protection
Compatible with CRC series and domestic activity meters
Exhaust air volume: 800 m³/h
Air supply filtration: HEPA 99.995% @ 0.5µm (H14)
Exhaust filtration: Radioactive gas filter adsorption
Built-in semiconductor radiation detector (50 KeV - 1.5 MeV)
Standard accessories: Lighting, UV lamp, ozone sterilization, power sockets
Power supply: Single-phase 220V / 50 Hz, 3Kw
