HPGe160 Series High Purity Germanium Gamma Energy Spectrometer 2100kHz
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 10 sets/month |
Gamma Energy Spectrometer 2100kHz
,High Purity Gamma Energy Spectrometer

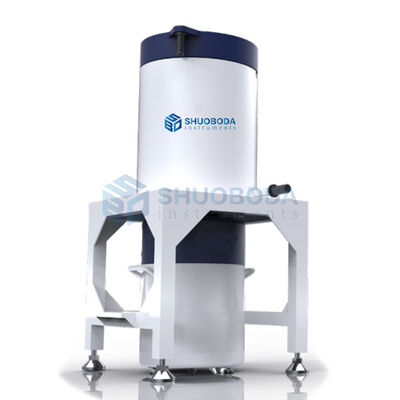

HPGe160 Series High Purity Germanium Gamma Energy Spectrometer
Product Description
HPGe160 Series High Purity Germanium Gamma Spectrometer consists of a high purity germanium detector, a digital spectrometer and multifunctional spectral analysis software. lt is a high precision laboratory gamma radiation measurement device for the measurement of low level radioactivity in environmental samples (e.g. water, air, soil, etc.)
Functional features
International level of energy resolution, 16k digital multi-channel signal processing system
Integrated low background lead chamber design with composite shielding material inside
Large measuring space in the lead chamber: effective height (end window to lower surface of lead cover) not less than 210mm
Adjustable multi-channel lower threshold, with direct adjustment of the pulse lower threshold of the input multi-channel
Data processing system with integrated data acquisition and analysis
Direct measurement or task mode available, measurement by appointment, automatic multiple measurements
ENSDF library of nearly 400 nuclides
Optional liquid nitrogen recondensation refrigeration (liquid nitrogen with electrical cooling), 8kanaloque multi-channel signal processing system
Application areas
Nuclear power safety
Measurements of radioactivity in nuclear power plants and the surrounding environment
Nuclear emergency radioactive contamination monitoring
Monitoring of radioactive material during decommissioning of nuclear reactors
Water quality monitoring
Radioactive environmental pollution monitoring
Ÿ Hydrological water quality monitoring
Ÿ Environmental samples with complex spectra
Test analysis
Radioactivity measurement of building materials
Radioactivity measurement of food
Higher education institutions and hospitals
Reactor, accelerator laboratory
Nuclear test laboratory
Radiation medicine
Technical Specification
|
HPGe160 Series High Purity Germanium Gamma Energy Spectrometer |
|
|
Detector type |
Coaxial HPGe detector |
|
(Relative) detection efficiency |
10%~160% optional |
|
Peak shape parameters |
FW0.1M/FWHM 2.0 |
|
Maximum measurable pulse rate |
2100kHz |
|
Energy range |
40keV~10MeV 3KeV~10MeV optional |
|
Integral background (50keV- 2MeV) |
<2.0cps |
|
Peak to Compton ratio |
2 62:1(40%);> 68:1(60%);2 73:1(70%); |
|
Energy resolution |
s2.0keV(@6Co,1332keV) |
|
Power supply method |
AC 220V+10%,50Hz+10% |
|
Power |
50W |
|
Communication methods |
USB RJ45 |
|
Machine size |
1410Hx700Wx700D(mm) |
|
Weight |
Approx.1300kg |
|
Operating temperature |
20°C+2°C |
|
Operating humidity |
5% to 80% (no condensing) |
