LLB100 Series Low Background α β Counter, Low Background Counters (PIPS detectors)
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working daya |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 100 sets per month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
LLB100
PIPS Detectors:
Area 2000mm2, Depth 300um
Background:
α:0.05cpm(3.0MeV~9.6MeV); β:0.6cpm(125keV~2.2MeV)
Highlight:
LLB100 low background alpha beta counter
,PIPS detector radiation testing equipment
,low background counters for radiation measurement
Product Description

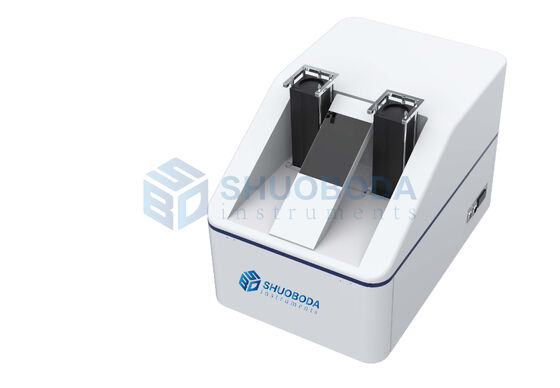

LLB100 Series Low Background α β Counter, Low Background Counters (PIPS detectors)
Product Overview
The LLB100 Low Background α (alpha), β (beta) Counter is a high-performance PIPS silicon detector-based radioactivity analyzer that operates without working gas. Designed for measuring α and β radioactivity in various environmental media and process samples, this system features automatic sample exchange for up to 50 samples simultaneously.
Functional Features
- Built-in screen for direct operation or PC connectivity
- Automatic and manual switching modes for specific scenarios
- User-friendly interface for easy operation
- Independent detectors with parallel gas circuit system - each circuit operates completely independently without interference
- Integrated data acquisition and analysis software with automatic processing, storage, and experimental report generation
Application Areas
Nuclear Power Safety
- Nuclear material inspection monitoring
- Nuclear fuel production and reprocessing
- Radioactivity measurement in nuclear power plants
- Nuclear emergency radioactive contamination monitoring
Test Analysis
- Radioactivity measurement of building materials
- Radioactivity measurement of food products
Environmental and Health Assessment
- Radon thorium aerosol measurement
- Food inspection
- Human health monitoring
Resource Exploration
- Uranium, oil, and gas exploration
- Groundwater resources assessment
- Nuclear industry geological survey systems
Higher Education Institutions and Hospitals
- Nuclear experimental sites
- Nuclear physics laboratories
- Medical and healthcare applications
- Agricultural sciences research
Technical Parameters
| Parameter | Specification |
|---|---|
| PIPS detectors | Area 2000mm², depth 300μm |
| Lead shielding thickness | 4 inches |
| Sample changer | Automatic sample changer with 50 sample capacity (standard) |
| Background | α: 0.05cpm (3.0MeV~9.6MeV); β: 0.6cpm (125keV~2.2MeV) |
| Typical efficiency (4π efficiency) | ²⁴¹Am: 39%, ⁹⁰Sr: 29% |
| Volume | 620H × 500W × 760D mm |
| Weight | Approximately 350kg |
| Operating temperature | 10°C to +40°C |
| Operating humidity | 95% (at 40°C) |
| Power supply | 220VAC; Equipped with UPS power supply for 30 minutes continuous operation after power failure |
| Power consumption | Peak power less than 80W (instrument host) |
| External interfaces | RJ45, USB, VGA |
| Display method | 7-inch touch industrial display, screen extension available via VGA interface |
