Laboratory α β Surface Contamination Meter Scintillation Detection Method DA-60B
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets per month |
Surface Contamination Meter Scintillation Detection
,Laboratory Surface Contamination Meter

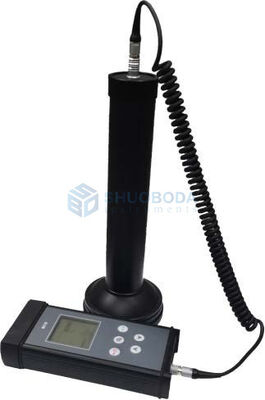

DA-60B α, β Surface Contamination Meter
Product introduction
DA-60B type α, β Surface Contamination Meter adopts scintillation detection method. It is used to detect the degree of α or β radioactive contamination on surfaces such as work surfaces, floors, walls, hands, clothes, shoes, etc. in radioactive workplaces and laboratories.
Features
• Can measure α, β γ separately, optional α nuclide identification
• Counter blocking alarm prompt and protection function
• Built-in large-capacity lithium battery, real-time display of battery capacity
• Dose rate alarm threshold setting, over-threshold alarm
• Flashing lights and audible pulse frequency to indicate radiation intensity
• Sound, vibration, light alarm real-time clock function
• Ultra-low power consumption design, real-time indication of battery power
• The detector adopts ZnS(Ag) detector with high sensitivity and fast response
• Backlight function for easy use at night and in low-light environments
• Large-size dot-matrix liquid crystal display, the measurement results are displayed clearly and intuitively Buttons, easy and convenient to operate
• Various alarm thresholds in line with national standards are available, and can also be defined by yourself
• 4GB large-capacity storage can store 100,000 sets of data for viewing at any time, data printing, and communication with the host computer (with analysis software)
• The connection cable between the host and the probe can be extended to 1.5 kilometers, and wireless docking is also possible
• The host has a built-in GM detector to monitor the surrounding environment of the operator in real time
Technical parameters
|
Item |
Specification |
|
Detector |
Double scintillation detector ZnS(Ag) coating, plastic scintillator crystal; the host is an inert detector |
|
Host gamma dose rate |
0.01--30000μSv/h (expandable to 10sv/h) |
|
Detector area |
62cm2 |
|
Nuclide library (optional) |
20 built-in nuclide libraries, which can be used to measure the activity of nuclides, and can be customized |
|
Counting range |
1～1000000 |
|
Detection efficiency |
α≥50%, β≥50% |
|
Sensitivity |
α surface activity response>7s-1Bq-1cm2; β surface activity response>7s-1Bq-1cm2 |
|
Measurement background |
α≤0.1CPS, β≤25CPS counts per minute |
|
Measuring time |
1, 10, 20, 60, 120 seconds optional |
|
Display unit |
CPM, CPS, Bq/cm2, mSv, μGy/h, mGy/h |
|
Relative basic error |
≤±10% |
|
Environmental characteristics |
Relative humidity range: -10℃～+45℃; relative humidity range: ≤90% (40℃). |
|
Power supply |
lithium battery; machine current ≤ 150mA |
|
Shell |
Engineered ABS, Magnesium Aluminum Alloy |
|
Waterproof |
The waterproof effect of the whole machine is IP65 |
|
Instrument weight |
about 1400g |
