SCM200 Lab Surface Contamination Monitor Portable 200cm2 Detection Area
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets per month |
Surface Contamination Monitor Portable
,Lab Surface Contamination Monitor

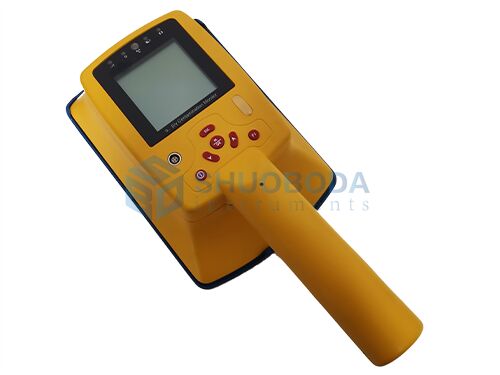

SCM200 Portable Surface Contamination Monitor
Product Introduction
SCM200 Portable surface contamination meter uses a ZnS-coated plastic scintillator probe, designed for simultaneous measurement of α, β, and γ surface contamination, can be used for surface contamination detection of work surfaces, floors, walls, clothing, skin, etc. in radioactive workplaces or laboratories.
It is widely used in environmental protection, public security, military, customs, health, nuclear industry, nuclear power plants, colleges and universities, enterprises and other units and departments.
Features
1．New plastic scintillator detector, no need to inflate;
2．α and β/γ can be measured simultaneously, and α or β/γ can be measured separately, no need for external probe;
3．β/γ background monitoring and compensation, alarm threshold can be set continuously;
4．Adjustable measurement time;
5．Large area LED display, can automatically sense and turn on the background light in dark environment;
6．Large detection area: 200cm2;
7．User-friendly interface, display unit cps, Bq or Bq/cm2;
8．Light weight, password-protected advanced menu.
9．Alarm threshold can be adjusted at will;
Technical Specifications
|
Model |
SCM200 |
|
Detector type |
plastic scintillator + ZnS (Ag), detection window uses aluminum polyester film foil; |
|
Detector size |
200cm2 |
|
Alarm mode |
sound and light alarm |
|
Unit |
cps, Bq or Bq/cm2 |
|
Background subtraction |
background subtraction and non-subtraction are optional, and background measurement time can be set |
|
Weight |
≤900g (including battery); |
|
Measuring range |
0.01CPS～99.99kCPS, 0.01Bq～99.99kBq, 0.01 Bq/cm2～99.99k Bq/cm2 |
|
Background count |
α: ≤ 0.1 cps, β/γ: ≤ 10cps |
|
Surface emissivity response |
α≥0.35 (for 241Am), β≥0.25 (for 204TI); |
|
Background measurement |
less than 0.04Bq/cm2 for α emitters and less than 0.4Bq/cm2 for β emitters; |
|
Power supply |
NiMH rechargeable battery can work for 25 hours |
|
Temperature |
-10℃～+40℃ |
|
Shell |
ergonomic plastic shell |
|
Instrument size
|
320×150×120mm (L (including handle)×W×H);
|
|
Use environment |
Working temperature is -20℃～+50℃ Working humidity is ≤95%RH (30℃, non-condensing) |
