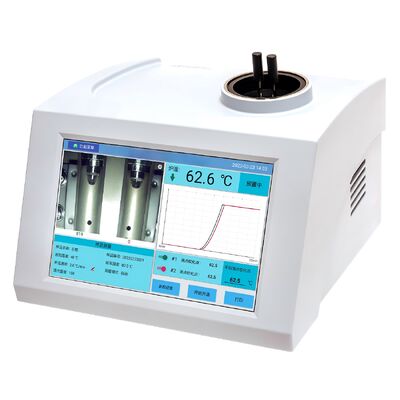

Fully Automatic Video Dropping Point and Softening Point Apparatus
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-300/360/400
Measurement Range:
RT~ 300/360/400°C
Measurement Mode:
Automatic / Visual (HD Camera, Video Recording, Playback Monitoring)
Processing Capacity:
2 Channels
Minimum Display Increment:
0.1°C
Heating Rate:
Continuously Selectable Within The Range Of 0.1°C/min – 20°C/min
Operating System:
Android Operating System (LIMS Compatible)
Product Description
Fully Automatic Video Dropping Point and Softening Point Apparatus
Product Overview
Dropping point and softening point testers are essential instruments for component control and quality inspection across various industries. These devices are widely used for testing substances including:
- Tar, asphalt, paraffin wax, resins, and rosin
- Lubricating grease, petrolatum, and industrial compounds
- Medicinal creams, ointments, suppositories, and salves
- Edible fats and oils
The instrument employs the advanced "cup-and-ball" method, replacing traditional Ubbelohde dropping point and "ring-and-ball" softening point methods. This innovative approach eliminates the need for water or glycerol, significantly simplifying cleaning procedures.
Key Features
- Simultaneous determination of dropping points and softening points for two samples
- High-definition camera for real-time observation of measurement processes
- Automatic video recording with playback capability for result verification
- Compliance with ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090 standards
- Meets Chinese Pharmacopoeia regulations for dropping point and softening point testing
- Optional Audit Trail software for GMP, GLP, and FDA/21 CFR Part 11 compliance
Technical Specifications
| Parameter | DP-300 | DP-360 | DP-400 |
|---|---|---|---|
| Measurement Range | RT ~ 300°C | RT ~ 360°C | RT ~ 400°C |
| Measurement Mode | Automatic / Visual (HD Camera, Video Recording, Playback Monitoring) | ||
| Processing Capacity | 2 Channels | ||
| Pre-stored Methods | 200 Types | 400 Types | 600 Types |
| User Management | / | 150 Users (Level 4 access) | 200 Users (Level 4 access) |
| Audit Trail | / | Optional (FDA software) | Optional (FDA software) |
| Data Traceability | / | Available | Available |
| Display Resolution | 0.1°C | ||
| Heating Rate | 0.1°C/min - 20°C/min (continuously selectable) | ||
| Operating System | Android (LIMS compatible) | ||
| Storage Capacity | 64 GB | 64 GB | 128 GB |
| Display | 10.1-inch IPS Capacitive Touchscreen; 720P HD Camera | ||
| Communication | 1 x RS232, 3 x USB | 1 x RS232, 3 x USB, 1 x RJ-45 | 1 x RS232, 3 x USB, 1 x RJ-45 |
| Power Supply | 100-240 V, 50/60 Hz, 150 W | ||
| Dimensions | 320 mm x 295 mm x 190 mm | ||
| Net Weight | 4.5 kg | ||
Optional Accessories
- Thermal Printer (RD-TH32-SC)
- Dot Matrix Printer (RD-TH24-SC)
- Wi-Fi Printer (HP Series)
