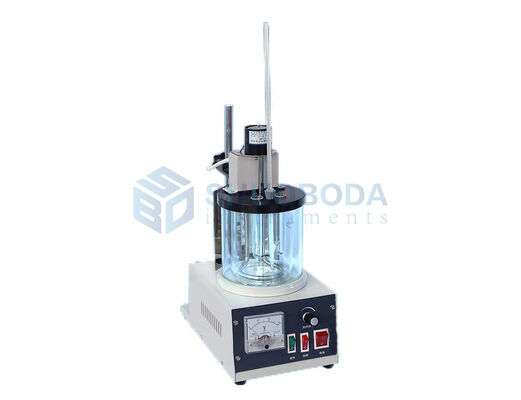

BD-D566-4929A Lubricating Grease Dropping Point Tester (Oil Bath)
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D566-4929A
Power Supply:
AC 220V±10%, 50 Hz;
Oil Bath:
It Is A Beaker Of 600 Ml;
Measurement Range:
-5~300°C;
Stirring Motor:
60 RPM;
Total Power Consumption:
Not More Than 900 W;
Dimensions (m):
0.51*0.28*0.57
Highlight:
Oil Bath Dropping Point Tester
,BD-D566 Dropping Point Tester
,4929A Dropping Point Tester
Product Description
BD-D566-4929A Lubricating Grease Dropping Point Tester (Oil Bath)
Product Overview
BD-D566-4929A Lubricating Grease Dropping Point Tester (Oil Bath) is designed and manufactured in accordance with the National Standard GB/T4929 "Test Methods for Dropping Point of Lubricating Grease" and ASTM D566. This instrument is specifically designed to determine the dropping point of lubricating grease.
Key Features
- The oil bath system consists of a heat-resistant beaker, heater, and electric motor with continuously adjustable heating power, ensuring uniform temperature distribution
- Desktop design structure for easy operation and user convenience
Technical Specifications
- Power supply: AC 220V±10%, 50 Hz
- Oil bath: 600 ml beaker capacity
- Grease cup: Chromium-plated brass construction; inner diameter: Φ9.92mm; orifice: Φ2.8mm; height: 12 mm
- Test tube: Heat-resistant borosilicate glass test tube with rim; inner diameter: 11.1-12.7 mm; features three equally spaced indentations for holding grease cup approximately 19 mm from bottom
- Thermometer: Measurement range: -5~300°C; Scale division: 1°C; Immersion depth: 76 mm; Total length: 390 mm
- Heater: 800 W capacity
- Stirring motor: 60 RPM
- Ambient temperature: -10~+40°C
- Relative humidity: ≤85%
- Total power consumption: ≤900 W
- Dimensions: 0.51 * 0.28 * 0.57 meters
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Grease cup | Piece | 2 | |
| 2 | Test tube | Piece | 2 | |
| 3 | Cork | Piece | 3 | |
| 4 | Guide ring | Piece | 2 | |
| 5 | Thermometer (-5°C to 300°C, scale division 1°C) | Piece | 3 | The 3# is for dropping point |
| 6 | Metal rod | Piece | 1 | |
| 7 | Power supply wire (250 V 6 A) | Piece | 1 | |
| 8 | Stopping ring for thermometer (1#) | Piece | 4 | |
| 9 | 5 A fuse (Φ5*20) | Piece | 2 |
