DP-CS-5 Intelligent Tablet Friability Detector
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-CS-5
Factory Default Speed:
25 Rpm
Cylinder Inner Diameter:
286mm
Cylinder Depth:
39mm
Drop Height:
156mm
Power Supply:
220V10%V, 50-60 Hz
Overall Dimensions:
440mm*310mm*340mm
Highlight:
intelligent tablet friability detector
,drug testing friability equipment
,tablet friability detector with warranty
Product Description

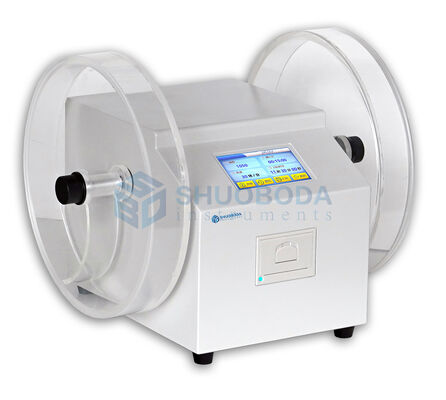

DP-CS-5 Intelligent Tablet Friability Detector
The DP-CS-5 Intelligent Tablet Friability Detector is a high-end testing instrument designed for pharmaceutical quality control, featuring advanced digital controls and precise measurement capabilities.
Key Advantages
- Stepless speed adjustment for precise control
- Quantitative recording and output of sample weight loss percentage (calculated separately for both wheels)
- Chinese characters, English, and numbers editing functions
- Standard 232 serial port printing capability
Compliance Standards
Complies with "Chinese Pharmacopoeia" 2020 Edition and "Measures for the Supervision and Administration of Drug Production"
Technical Specifications
Display & Control: High-definition color touch screen with interactive control and intelligent management
Security: Three-level authority management with password login (username + password)
Data Management: Unlimited audit trail recording with traceability function
Output: Quantitative friability test results with recording, storage, display and printing
Printing: Sample name, logo, number, tester, supervisor, test timing, lap accumulation, real-time rotation speed, quantified weight loss percentage, test dates
Timing Range: 0~86400 seconds (arbitrarily set within 24 hours)
Timing Modes: Basic test (forward timing with pause/continue) and Programmed test (countdown with preset saving)
Counting Range: 0~99999 circles, set arbitrarily
Speed Control: Stepless adjustment from 10 rpm to 80 rpm with ≤0.01 rpm accuracy
Rotation: Clockwise or counterclockwise direction setting
Mechanical Design: Pure mechanical transmission for smooth rotation, long service life, no swing, and no noise
Cylinder Dimensions: 286mm inner diameter, 39mm depth
Drop Height: 156mm
Power Supply: 220V±10%, 50-60 Hz
Overall Dimensions: 440mm * 310mm * 340mm (L*W*H)
