DT-YB-3A/3B Double Side Drug Tablet clarity tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DT-YB-3A/3B
Illuminance Range:
1000-6000LX
Power Supply:
AC220V±10% 50Hz
Power:
22W
Lamp Tube:
20W
Time Limit Range:
1-99S Can Be Set Arbitrarily
Overall Dimensions:
703mm×345mm×513mm
Highlight:
double side drug tablet tester
,drug tablet clarity tester
,pharmaceutical tablet testing equipment
Product Description

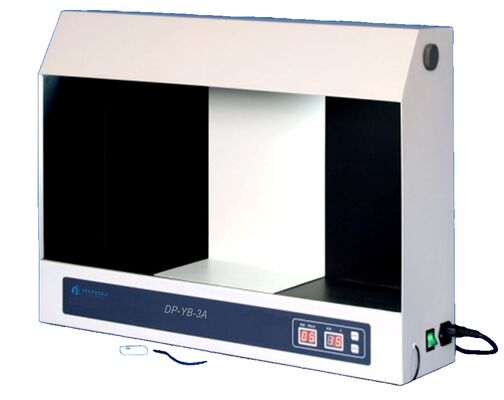

DT-YB-3A/3B Double Side Drug Tablet Clarity Tester
The DT-YB-3A Double Side Drug Tablet Clarity Tester is a precision inspection apparatus developed in compliance with the People's Republic of China Pharmacopoeia 2010 edition Appendix "Visible Foreign Matter Test" provisions. This instrument meets Chinese Pharmacopoeia requirements and utilizes visual light inspection methodology for comprehensive clarity detection of various injections, infusions, and bottled liquid medicines.
DT-YB-3B Model: Constructed with durable 304 stainless steel shell for enhanced longevity and professional appearance.
Advanced Features
- Chip-integrated control system with full touch buttons replaces traditional timing dial, increasing instrument lifespan by 3 times
- Self-correction function allows users to calibrate illumination using standard illuminance meters
- Extended bottom whiteboard enables side-by-side inspection of infusion bags
- Upgraded Class A precision pharmaceutical detection lamp with twice the lifespan of traditional lamps
- Voltage stability control circuit eliminates stroboscopic effects in detection light path system
- Adjustable illumination improves visual resolution and reduces operator fatigue
- Digital electronic illuminance meter provides intuitive, stable readings with audible and visual alarm functions
- Flexible detection time settings from 1-99 seconds
Technical Specifications
| Detection Method | Double-sided detection |
| Illuminance Range | 1000-6000 LX |
| Power Supply | AC220V ±10% 50Hz |
| Power Consumption | 22W |
| Lamp Tube | 20W dedicated Class A refined three-primary color fluorescent lamp with electronic ballast |
| Time Limit Range | 1-99 seconds (user-configurable) |
| Overall Dimensions | 703mm × 345mm × 513mm |
| Weight | Approximately 25 kg |
