Lab Fully Automatic Open Flash Point Tester Built In Atmospheric Pressure Detection Chip
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D92-001ZI
Display:
10-inch 65K (resolution 800*600) Touch Screen Display
Measurement Method:
Thermocouple Differential Detection Type
Measurement Range:
RT~400℃
Repeatability:
±4℃
Printer:
High-speed Thermal Printer, 56 Mm Paper Width
Ignition:
Automatic Electronic Ignition
Highlight:
Automatic Open Flash Point Tester
,Lab Open Flash Point Tester
Product Description

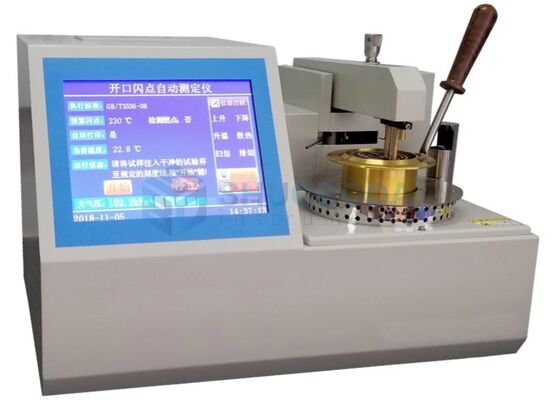

BD-D92-001ZI Fully automatic open flash point tester
Applicable Standards
GB/T 3536
ASTM D92
Performance Characteristics
- Adopt high-speed signal processor control and adaptive PID control algorithm to automatically adjust the heating curve according to standard requirements;
- Built-in automatic atmospheric pressure detection chip, automatic measurement, automatic correction and flash point value correction of atmospheric pressure;
- Data storage function, can store 300 results, and check historical records at any time;
- Differential detection, automatic correction of system deviation, automatic stop detection and alarm when temperature exceeds value;
- Automatic measurement of lifting, stirring, ignition, detection, alarm, cooling, and printing instruments is completed;
- Safe, no air source, platinum alloy electric heating wire ignition method, safe, stable, reliable, high testing accuracy;
- Can be connected to a laptop through the USB interface to achieve network management;
- Multi-language display operation, the instrument program can be upgraded when national standards are revised;
Technical indicators
- Display mode: 10-inch 65K (resolution 800*600) touch screen display,
- Measurement method: thermocouple differential detection type
- Measurement range: room temperature-400℃
- Repeatability: ±4℃
- Printer: high-speed thermal printer, 56 mm paper width
- Ignition mode: automatic electronic ignition
- Temperature detection: imported precision platinum resistor
- Self-test function: printer, igniter, solenoid valve, detection arm lifting, ignition rod sweeping, etc.
- Power consumption: <550W
- Using environment: temperature 10℃-45℃, humidity less than 85%
- Overall dimensions: 450×280×290mm
- Power supply: AC220V±10%
- Weight: about 15 kg
Configuration
|
No. |
Name |
quantity |
|
1 |
Open flash point tester |
1Set |
|
2 |
Oil cup |
1 |
|
3 |
Silicone tube |
1 |
|
4 |
Printer paper |
2 Rolls |
|
5 |
Fuse wire |
2 |
|
6 |
Power cord |
1 |
|
7 |
specification |
1Copy |
|
8 |
Certificate of qualification |
1Copy |
