Multiple Tank Parallel Fermenter Bioreactor FMT-H Series
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Parallel Fermenter Bioreactor
,Multiple Tank Fermenter Bioreactor

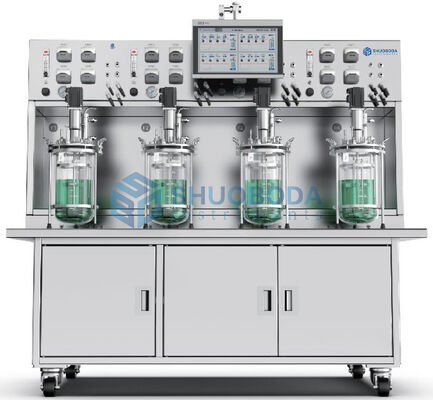

FMT-H Series Multiple-tank Parallel Fermenter Bioreactor
FMT-H series multi-parallel fermenter s a standard multi-parallel fermenter designed for laboratory users, suitable for laboratory parallel fermentation research, for laboratory multi-condition parallel exploration and research, for laboratory at different temperatures, The exploration and comparative study of fermentation yield under the conditions of PH, DO, stirring, etc., compared with the traditional single-tank system, shortens the development time and cycle exponentially.
FMT-H series adopts an integrated stainless steel chassis design, 15.6-nch high-definition large-screen touch screen, clear interface, easy to operate, and can meet the needs of 3 to 9 groups of tanks for parallel fermentation research.
Advantages
Ÿ Adopts SIMATIC-1200 high-end processor
Ÿ Adopts RS-485 bus control communication, improving system operation stability
Ÿ The vessels contain 3L 5L, 7L and 13L, supporting free combination and matching
Ÿ SD-Control V2.22 multi-connection control system, can be used in a single vessel or in multiples
Ÿ Extensible: ORP exhaust gas analysis, online OD, etc.
Features
|
|
Comparable to imported manufacturing process tanks Ÿ Derived from Sartorius and Applinkon tank design ideas, replaceable Ÿ Stable air tightness, convenient and quick disassembly and assembly mechanism, and convenient laboratory operation Ÿ overall AISI 316L stainless steel, precision ground and electrolytic polished, the overall manufacturing process is comparable to the same imported products from the United States and abroad. |
|
|
Advanced Pump Solutions Ÿ Adopt four-way pump body solution Ÿ Each group of pump bodies adopts variable speed regulation Ÿ Pump body adopts roller high-precision pump, which is not easy to be damaged |
|
|
Excellent FMT-MT large screen controller Ÿ 15.6-inch high-definition large screen, Internet of Things control Ÿ Siemens Smart 200 series PLC, satisfying basic operation and cost-effective Ÿ Overall stainless-steel wire drawing process meets the requirements of hygiene and wear resistance Ÿ Built-in SD-Control V 2.0 control software, which can implement online monitoring, recording and curve display |
|
|
Core technologies Ÿ Core R&D team comes from the fermentation tank team of the German company, with stable and reliable technical support Ÿ Strong corporate philosophy supports the excellence of our products Ÿ Product design is comparable to imported fermentation tanks such as NBS and Applinkon |
Specifications
|
No. |
Item |
Specifications |
|
1 |
Vessel |
Ÿ Volume: 3L, 5L, 10L, 15L Ÿ Material: Tank body: High temperature resistant borosilicate glass, Tank lid: AlS316L stainless steel |
|
2 |
Stirring system |
Ÿ Stirring motor: high-precision servo motor, speed 0~1200rpm Ÿ Stirring method: top mechanical stirring Ÿ Special stirring paddle: single-layer oblique blade stirring paddle, flat blade stirring paddle |
|
3 |
Air inlet system |
Ÿ Flowmeter: Rotameter imported from Dwyer in the United States, electromagnetic flowmeter is optional Ÿ Filter: Sartorius high-efficiency sterilizing filter from Germany, with a filtration accuracy of up to 0.2um |
|
4 |
pH detection and control system |
Ÿ Brand: Swiss Mettler Toledo Ÿ Control range: 2.00~12.00 pH Ÿ Control: SD-K integrated transmitter, signal isolator, 485 communication |
|
5 |
DO detection and control system |
Ÿ Brand: Swiss Mettler Toledo Ÿ Control range: 0~200% Ÿ Control: LF-K integrated transmitter, signal isolator, 485 communication |
|
6 |
Temperature Control System |
Ÿ Temperature sensor: pt100 platinum electrode (high temperature quick release form) Ÿ Insulation blanket electric heating method Ÿ Temperature control range: 5~65C |
|
7 |
Feeding system |
Ÿ Feed Pump: Peristaltic Pump Flow Addition Ÿ Control mode: manual or automatic control |
|
8 |
Defoaming system |
Ÿ Foam detection: highly sensitive defoaming probe Ÿ Defoaming paddle: mechanical defoaming paddle with rake compression Ÿ Antifoam Pump: Peristaltic Pump Flow Addition |
|
9 |
sampling |
Ÿ Sterile sampling system, autoclavable Ÿ Dual design, users can also use traditional flameinoculation to inoculate |
|
10 |
FMT-M Controller SD-Control v2.2 control system |
Ÿ Controller: Siemens PLC controller Ÿ 15.6-inch high-definition large screen, Internet of Things control Ÿ Whole machine is made of stainless steel AlS1304 wire drawing process, fine grinding Ÿ Curve display function, historical data recording and export |
|
11 |
Size(L*W*H) |
Ÿ Chassis 645 * 1355 * 700mm |
|
12 |
power supply |
Ÿ Input: AC110~240v/1.2kw Ÿ Output: Motor, thermal blanket, peristaltic pump and other power parts use 24V safety voltage |
Products view
