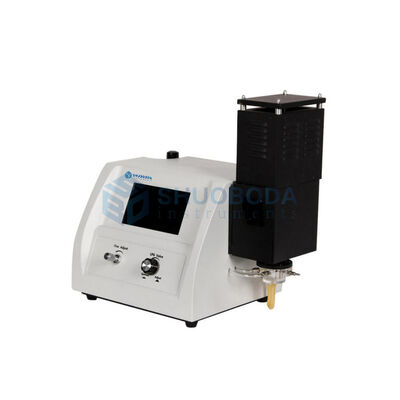

FP6431 K Na Ca Flame Spectrophotometer With Safety Flame Protection
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Ca Flame Spectrophotometer
,Na Flame Spectrophotometer
FP Series Flame Spectrophotometer
Detailed introduction
FP series multi-element flame photometer is a newly designed instrument. It has the advantages of small size, easy operation and stable and reliable. Host with 7-inch color capacitive touch LCD screen, can store up to 10 points a group of standard curve 200 sets of test data. FP series flame photometer uses liquefied gas as gas.
Main feature:
with K, Na, Li, Ca, Ba concentration of direct reading function. (Depending on model)
With K, Na, Li, Ca, Ba detection range screen switching function. (Depending on model)
With correlation coefficient automatic calculation function.
Pre-selected with flame size.
With a safety flame protection device.
With data direct printing device (optional).
With USB communication port.
Optional operating software.
Specifications
|
Model |
FP6450 |
FP6440 |
FP6432 |
FP6431 |
FP6430 |
|
|
Display method |
7 inch color capacitive touch LCD screen |
|||||
|
Show results |
Concentration value |
|||||
|
Reading range |
0.000～999.9 |
|||||
|
Test elements |
K, Na, Li, Ca, Ba |
K, Na, Li, Ca |
K, Na, Ba |
K, Na, Ca |
K, Na, Li |
|
|
Number of channels |
5 |
4 |
3 |
3 |
3 |
|
|
test limit mmol/L |
K |
≤0.004 |
||||
|
Na |
≤0.008 |
|||||
|
Li |
≤0.015 |
〇 |
〇 |
≤0.015 |
||
|
Ca |
≤0.050 |
〇 |
≤0.050 |
〇 |
||
|
Ba |
≤0.044 |
〇 |
≤0.044 |
〇 |
〇 |
|
|
Linearity error mmol/L |
K |
≤0.005 |
||||
|
Na |
≤0.03 |
|||||
|
Li |
≤0.021 |
〇 |
〇 |
≤0.021 |
||
|
Ca |
≤0.075 |
〇 |
≤0.075 |
〇 |
||
|
Ba |
≤0.066 |
〇 |
≤0.066 |
〇 |
〇 |
|
|
Response time |
＜8s |
|||||
|
Minimum suction volume |
＜6ml/min |
|||||
|
stability |
With the standard solution for continuous injection, 15s within the instrument shows the relative maximum amount of change ≤ 3% 1 test per minute, a total of 6 times, the maximum value of the instrument changes ≤ 15% |
|||||
|
Repeatability |
≤3% |
|||||
|
Graph |
Have |
|||||
|
printer |
Optional |
|||||
|
Printer type |
Built-in thermal printer |
|||||
|
USB interface |
Have |
|||||
|
Connect to the computer |
Yes |
|||||
Flame Spectrophotometer Packing List
|
Item |
Description |
Qty. |
|
1 |
Main Instrument |
1 |
|
2 |
User manual |
1 |
|
3 |
Power cable |
1 |
|
4 |
Air compressor |
1 |
|
5 |
Pu pipe(air)Φ6*4 |
2M |
|
6 |
Latex pipe(liquid waste)Φ6 |
1.5M |
|
7 |
Capillary(1.8*0.8*180) |
1 |
|
8 |
Rubber pipe (liquefied gas)Φ10 |
2M |
|
9 |
Liquefied gas regulato |
1 |
|
10 |
Locking chuck(liquefied gas) |
1 |
|
11 |
Glass cover |
1 |
|
12 |
Cover part (chimney cover) |
1 |
