VSP-S22PC Visible Spectrophotometer 340nm - 1000nm 6nm ±2.0nm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | ,L/C,T/T |
| Supply Capacity: | 500 sets/month |
Visible Spectrophotometer 340nm
,Visible Spectrophotometer 1000nm

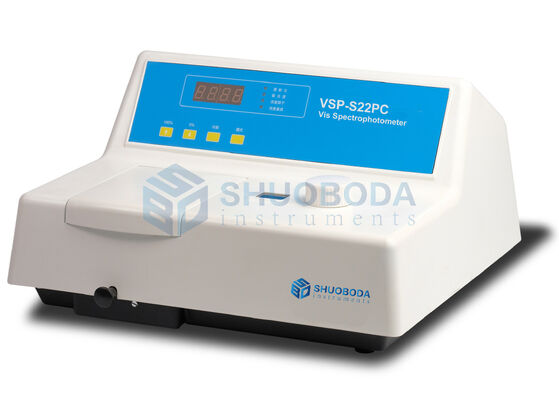

VSP-S22PC Visible Spectrophotometer, 340-1000nm, 6nm, ±2.0nm
Application
VSP-S22PC Spectrophotometer is a compact and easy to operate instrument. It can be applied in measurement of transmittance, absorbance and direct concentration readout of transparent material. They have been versatility employed in the fields of hygiene and medicine, clinical examination, biochemistry, petrol chemical engineering, environmental monitoring and inspections, and quality controls for qualitative and quantitative analysis of concerning samples.
VSP-S22PC Spectrophotometer adopts a reasonable structure and advanced optical system design. It uses a precision-processed high-quality C-T monochromator and sealed grating. It is small in size and has good optical performance. The sample chamber accommodates 4-position cuvette holders, with optional 1-5cm light diameter rectangular cuvette holders and 5cm cuvette holders.
Feature
Aspherical light source optics, Curny-terner configuration diffraction grating monochromator.；
Simple & clear keyboard operation is convenient to realize auto 0% T &100% T adjustment T/A transformation, , factor setting and direct concentration readout function；
With RS232 parallel interface,special serial printer can be chosen for printing data directly；
With RS232 serial interface,data processing package compatible,Transmittance and Absorbance,Standard Curve Mode,Quantitative Analysis Mode are provided；
Spacious sample compartment, 4 position cell rack, adaptable for 1-5 cm optical path rectangular cells.
Technical specifications:
|
Model |
VSP-S22P |
|
Optical system |
High quality C-T monochromator and 1200 lines/mm diffraction grating |
|
Display method |
4-digit LED display |
|
Wavelength range |
340-1000nm |
|
wavelength bandwidth |
6nm |
|
stray light |
≤0.2%T |
|
Transmittance accuracy |
±0.5%T |
|
Transmittance repeatability |
≤0.2%T |
|
Wavelength accuracy |
±2.0nm |
|
Wavelength repeatability |
≤1.0nm |
|
Transmittance range |
0.0-199.9%(T) |
|
Absorbance range |
-0.3-2.999(A) |
|
Interface Type |
RS232 serial port machine parallel printing port |
|
power supply |
220V/50Hz |
|
Dimensions |
370mm×320mm×190mm |
|
weight |
7Kg/9Kg |
Standard Package
1. VSP-S22PC 1 Set
2. 1 cm Rectangular cell 1 Case (4 PCs)
3. 4 position cell holder 1 PC.
4. Power cable 1 PC.
5. Operation manual 1 PC.
6. Certificate of quality checking 1 PC.
7. Fuse (2A) 1 PC.
Optional Spare Parts and Accessories
1. Fuse (2A/3A)
2. Source lamp assembly complete with pre-adjusted lamp holder
3. Rectangular cells 1 cm, 2 cm, 3 cm, 4.5cm cell rack
4. Spectrophotometer data processing software package for cooperate with PC
5. RS-232C serial cable
