FTIR-10 Portable Electronic Fourier Transform Infrared FTIR Spectrometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Fourier Transform Infrared FTIR Spectrometer
,Electronic FTIR

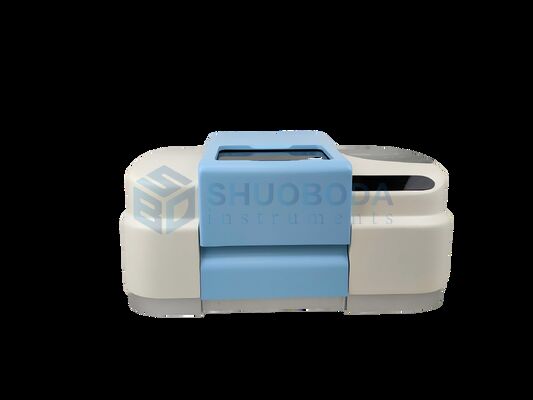

FTIR-10 Portable Fourier Transform Infrared Spectrometer
Product Introduction
The FTIR-10 Fourier Transform Infrared Spectrometer is characterized by its convenient installation, ease of use, and convenient maintenance. It is an indispensable spectroscopic analysis instrument in industries such as materials science, biomedicine, petrochemicals, and food safety. It is also an essential laboratory analytical instrument for related disciplines in universities and research institutes.
Features
Superior Optical System
Sealed interferometer design, employing a beam splitter with a moisture-proof film and an ultra-large capacity desiccant box, significantly enhances moisture resistance.
Utilizes a one-piece molded gold-plated pyramidal reflector with a large aperture, achieving over 97% reflectivity and excellent energy efficiency.
Off-axis mirrors are machined using a cutting process, resulting in extremely high efficiency and consistency throughout the infrared optical system.
Intelligent Operating Software
Intelligent Operating Software: Allows for marking infrared spectra and features data processing, spectrum retrieval, user-built spectrum library, instrument self-diagnosis, spectrum matching, basic infrared analysis, QC comparison, point-by-point smoothing, Y-axis normalization, spectrum group saving, peak marking, spectrum arithmetic operations, and standard file formats.
Offers multiple professional spectrum libraries, with over 220,000 infrared spectra available. It also includes a pharmacopoeia-specific search software containing pharmacopoeia-standard infrared spectra.
User-Friendly Design
Extra-large sample chamber design facilitates connection to various accessories. The sliding sample chamber door significantly reduces air exchange during sample measurement, minimizing interference with experiments.
Compact and small instrument design saves space on the experimental workbench. Modular design of major components makes the instrument simple to use and easy to maintain.
Includes Chinese and English software and manuals for user convenience.
Automatic conversion of the epitaxial optical path sample chamber.
High-Performance Electronic System
High-speed USB 2.0 interface, compatible with USB 3.0;
High-sensitivity imported DLATGS receiver;
24-bit A/D conversion;
Utilizes a high-performance, long-life ceramic light source with a luminous efficiency of up to 80%, enhancing spectral energy in the fingerprint area;
Employs a highly efficient and energy-saving electrical system design. Under normal operation, the entire unit consumes less than 30W, making it green and energy-saving.
Technical Parameter
|
Model |
FTIR-10 |
|
Spectral range |
7800-350cm-1 |
|
Resolution |
Better than 1.0cm-1 |
|
Signal-to-noise ratio |
Better than 15000:1 / Better than 30000:1 (P-P value, 4cm-1, 1 minute scan) optional |
|
Wave number accuracy |
Better than 0.01cm-1 |
|
Transmittance accuracy |
Better than 0.5τ% |
|
Interferometer |
Non-orthogonal Michelson interferometer |
|
Detector |
High-sensitivity DLATGS detector (imported) |
|
Beam splitter |
Multi-layer coated potassium bromide with moisture-proof coating (imported) |
|
Infrared light source |
Imported long-life, high-intensity, air-cooled ceramic infrared light source |
|
Data transmission interface |
High-speed USB2.0 (compatible with USB3.0) |
|
Power supply |
100V-240V, 50/60Hz wide power supply |
|
Compatible operating system |
Windows XP, Windows Vista, Windows7, 8, 10, 11 |
|
Instrument dimensions |
450×350×210mm |
|
Weight |
14㎏ |
Typical Applications
Solid Powder Samples:
Samples are prepared into thin sheets by grinding and pressing with KBr.
Widely used in pharmaceuticals, materials science, environmental protection, and scientific research.
Liquid and Gas Samples:
Liquid testing can be achieved using a liquid cell or ATR accessory.
Gas testing is achieved using a gas cell accessory.
Widely used in pharmaceuticals, chemicals, and scientific research.
Plastics and Other Polymers:
Tested using ATR or hot pressing methods.
Hot Pressing: The sample is heated to an appropriate temperature using a hot press mold and then pressed into a thin sheet.
ATR Method: The relatively flat surface of the sample is placed on a crystal, and the knob is tightened for testing. Note: When testing black or high-refractive-index samples with ATR, the crystal needs to be replaced.
Other Infrared Applications
Ø Infrared oil testing applications, such as transformer insulating oil, oil in water, etc.: Generally, an infrared cuvette or liquid cell is sufficient for testing.
Ø Determination of free silica content in dust: Includes a solid test kit, α-quartz standard, and specialized software.
Ø Determination of hydroxyl content in quartz: Equipped with a dedicated hydroxyl content testing accessory and software.
Ø Rubber component identification: Can be performed using traditional pyrolysis methods or ATR accessories.
Ø Determination of carbon and oxygen impurities in single-crystal silicon: Includes a dedicated support and standard silicon wafer samples.
Instrument Expandability
Includes Fourier Transform Infrared Spectrometer main unit and product manual (English), ATR sampling accessory, tablet press, tablet mold, potassium bromide spectrally pure reagent, agate mortar, detachable liquid cell, English data processing software, workstation computer (configuration no less than: dual-core 2G, 320G, 19-inch LCD, supports English), color printer.
