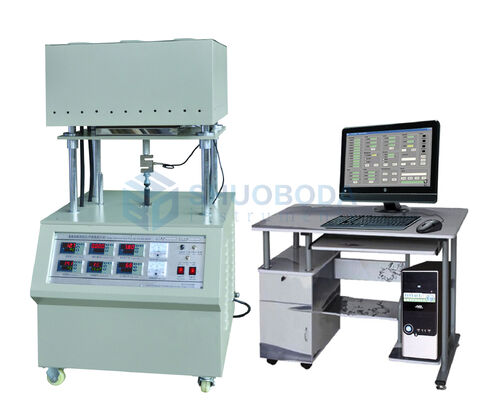

TCT-5H Fully Automatic Double Plate Thermal Conductivity Tester (protected hot plate method)

Description

This thermal conductivity meter mainly tests homogeneous plate materials such as plastics, glue, glass, fiber, benzene board, extruded board, foam concrete, hollow glass, wooden boards, various insulation materials, etc. It can also measure granular materials and bulk materials. , soft materials and other materials. Applicable standards: GB/T10294-2008 "Determination of steady-state thermal resistance and related characteristics of thermal insulation materials"; GB/T3399-1982 "Test method for thermal conductivity of plastics-heat-protected plate method" ; Measurement of thermal conductivity of polyurethane rigid foam materials specified in GB/T10801.1-2002 "Polystyrene foam for thermal insulation"; GB/T10801.2-2002 "Extruded polystyrene foam for thermal insulation (XPS)" )" Measurement of thermal conductivity of extruded polystyrene foam plastics; GB/T3139-2005 "Test Method for Thermal Conductivity of Fiber Reinforced Plastics"; GB/T 17794-2008 "Flexible Foam Rubber and Plastic Insulation Products";

Main technical parameters

 Thermal conductivity measuring range: 0.001～3.000 W/m.K,

 Measurement accuracy: ±2%, repeatability: ±1%.

 Hot surface temperature measurement range: room temperature ~ 150°C, temperature resolution: 0.01°C (standard configuration). It can also be produced according to user requirements: room temperature ~ 300°C, otherwise agreed in the contract.

 Cold surface temperature measurement range: 0~60℃, temperature resolution: 0.01℃, (can be selected according to user requirements: -5~60℃).

 Thickness measurement range: 0~100mm, resolution: 0.001mm, automatic thickness measurement.

 Pressure measurement range: 0～500N, resolution: 0.1N.

 Test piece size: 300*300* (5-50) mm (basic configuration) (other specifications can be customized according to user requirements).

 Full computer automatic detection and data processing system, compatible with general-purpose computers.

 The whole process test time: 60 minutes.

 Power supply: 220V 50HZ.500W.

Features

 Online temperature calibration: Unique technology, calibration instrument is simple and fast, and the accuracy is increased by more than 3 times.

 The whole process testing time is greatly shortened.

 Large measuring range: range 0.001-3.00w/(m.k).

 Automatic thickness measurement: Computer automatically measures thickness to reduce human error.

 Automatic pressurization system: The computer automatically pressurizes, which can test the thermal conductivity under different pressures. It is more scientific, more data-based and has better repeatability than manual pressurization.

 Various measurement types: In addition to measuring hard plates, the company's various accessories can be selected to measure a variety of special materials. For example: granular materials and bulk materials.

Configuration

1. One host;

2. A set of analysis software (Chinese and English versions);

3. One HX-1005 precision low-temperature constant temperature water tank (temperature control accuracy 0.01℃);

4. One desktop computer (user can choose);

5. One piece of standard sample;

Dimensions and weight

1. Host: Standard floor-standing model: (length × width × height) 550 × 450 × 1500mm, net weight: 100Kg.

2. Precision low-temperature constant temperature water tank: (length × width × height) 300 × 350 × 530mm, net weight: 35Kg.
