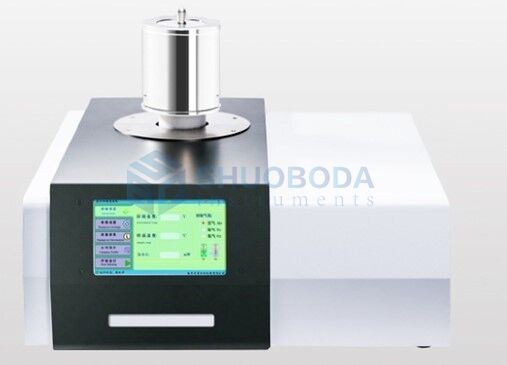

High Temperature Differential Thermal Analyzer DTA-3332C RT 1500℃ DTA Analysis
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
High Temperature Differential Thermal Analyzer
,Differential Thermal Analyzer DTA
,High Temperature DTA Analysis
DTA-3332 Series High temperature differential thermal analyzer
DTA3332 High temperature differential thermal analyzer has been granted the National Patent.
Product introduction
Differential thermal analysis is a technology that measures the temperature difference and temperature relationship between a substance and a reference substance under program-controlled temperature. The differential thermal analysis curve describes the relationship between the temperature (ΔT) between the sample and the reference material as a function of temperature or time.
Working principle
In DTA tests, changes in sample temperature are caused by endothermic or exothermic effects of phase transitions or reactions. Such as: phase transition, melting, transformation of crystal structure, boiling, sublimation, evaporation, dehydrogenation reaction, fragmentation or decomposition reaction, oxidation or reduction reaction, destruction of lattice structure and other chemical reactions.
Features
Ÿ The main control chip of the instrument adopts STM32 series controller, which has faster processing speed and more stable temperature control
Ÿ The instrument adopts USB two-way communication, which makes the operation more convenient.
Ÿ The instrument adopts a 7-inch 24bit full-color LCD touch screen with high display resolution and comprehensive display information
Ÿ The instrument adopts platinum rhodium alloy sensor, which is more resistant to high temperature and oxidation
Ÿ Fully automatic temperature control system, temperature rise and constant temperature can be controlled by software to improve testing efficiency.
Technical parameters
|
Model |
DTA-3332A |
DTA-3332C |
|
Temperature range |
Room temperature~1150℃ |
Room temperature~1500℃ |
|
Measuring range |
0～±2000μV(expandable) |
0～±2000μV(expandable) |
|
DTA sensitivity |
0.01μV |
0.01μV |
|
DTA accuracy |
0.1μV |
0.1μV |
|
Heating rate |
1～100℃/min |
1~100℃/min |
|
Temperature resolution |
0.01℃ |
0.01℃ |
|
Temperature accuracy |
±0.1℃ |
±0.1℃ |
|
Temperature repeatability |
±0.1℃ |
±0.1℃ |
|
Temperature control |
Heating: program control, parameter can be adjusted as required; Constant temperature: program control, constant temperature time can be set arbitrarily |
|
|
Furnace structure |
The upper cover opening structure is adopted, with high precision and easy operation |
|
|
Atmosphere control |
Internal program automatic control |
|
|
Data interface |
Standard USB interface, supporting data cable and operating software |
|
|
Display method |
24bit color, 7-inch LCD touch screen display |
|
|
Parameter standard |
Equipped with standards, with one-key calibration function, users can calibrate the temperature by themselves |
|
|
Baseline adjustment |
Users can adjust the baseline through the slope and intercept of the baseline |
|
|
Power supply |
AC 220V 50Hz (110V 60Hz is optional) |
|
