High Temperature Thermogravimetric Differential Thermal Analysis DTA-3332A RT 1150℃
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Thermogravimetric Differential Thermal Analysis
,High Temperature Differential Thermal Analysis

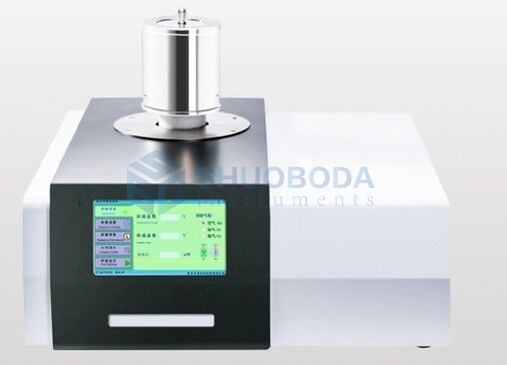

DTA-3332 Series High temperature differential thermal analyzer
DTA3332 High temperature differential thermal analyzer has been granted the National Patent.
Product introduction
Differential thermal analysis is a technology that measures the temperature difference and temperature relationship between a substance and a reference substance under program-controlled temperature. The differential thermal analysis curve describes the relationship between the temperature (ΔT) between the sample and the reference material as a function of temperature or time.
Working principle
In DTA tests, changes in sample temperature are caused by endothermic or exothermic effects of phase transitions or reactions. Such as: phase transition, melting, transformation of crystal structure, boiling, sublimation, evaporation, dehydrogenation reaction, fragmentation or decomposition reaction, oxidation or reduction reaction, destruction of lattice structure and other chemical reactions.
Features
The main control chip of the instrument adopts STM32 series controller, which has faster processing speed and more stable temperature control
The instrument adopts USB two-way communication, which makes the operation more convenient.
The instrument adopts a 7-inch 24bit full-color LCD touch screen with high display resolution and comprehensive display information
The instrument adopts platinum rhodium alloy sensor, which is more resistant to high temperature and oxidation
Fully automatic temperature control system, temperature rise and constant temperature can be controlled by software to improve testing efficiency.
Technical parameters
|
Model |
DTA-3332A |
DTA-3332C |
|
Temperature range |
Room temperature~1150℃ |
Room temperature~1500℃ |
|
Measuring range |
0～±2000μV(expandable) |
0～±2000μV(expandable) |
|
DTA sensitivity |
0.01μV |
0.01μV |
|
DTA accuracy |
0.1μV |
0.1μV |
|
Heating rate |
1～100℃/min |
1~100℃/min |
|
Temperature resolution |
0.01℃ |
0.01℃ |
|
Temperature accuracy |
±0.1℃ |
±0.1℃ |
|
Temperature repeatability |
±0.1℃ |
±0.1℃ |
|
Temperature control |
Heating: program control, parameter can be adjusted as required; Constant temperature: program control, constant temperature time can be set arbitrarily |
|
|
Furnace structure |
The upper cover opening structure is adopted, with high precision and easy operation |
|
|
Atmosphere control |
Internal program automatic control |
|
|
Data interface |
Standard USB interface, supporting data cable and operating software |
|
|
Display method |
24bit color, 7-inch LCD touch screen display |
|
|
Parameter standard |
Equipped with standards, with one-key calibration function, users can calibrate the temperature by themselves |
|
|
Baseline adjustment |
Users can adjust the baseline through the slope and intercept of the baseline |
|
|
Power supply |
AC 220V 50Hz (110V 60Hz is optional) |
|
