TG TGA Lifting Thermal Gravimetric Analyzer TGA200 RT ~ 1250℃ Thermogravimetric Analysis Equipment
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
TGA Lifting Thermal Gravimetric Analyzer
,TG Lifting Thermal Gravimetric Analyzer
,TGA Thermogravimetric Analysis Equipment

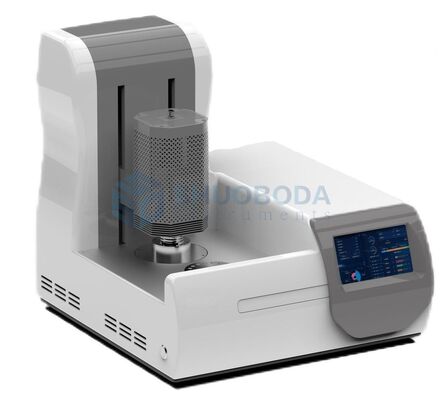

TGA200 TG TGA Lifting Thermal Gravimetric Analyzer
Introduction
TGA200 TG TGA Lifting Thermogravimetric Analyzer is a new automatic lifting thermogravimetric analyzer launched by SHUOBODA. The furnace adopts an automatic lifting structure, which makes it convenient to place samples and cool down quickly. The instrument has high precision and can capture subtle changes in mass. PID intelligent temperature control can achieve heating, constant temperature and cooling, and two-way control, making the operation more convenient.
Test range
TGA200 lifting thermogravimetric analyzer mainly measures the thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of components, and the influence of additives and fillers.
Application range
TGA200 lifting thermogravimetric analyzer has a wide range of applications, including: polymer materials, composite materials, metal materials, inorganic materials, biomedicine, food, chemical industry, energy, construction engineering, etc.
Main features
The furnace body heating adopts double-row winding of precious metal platinum-rhodium alloy wire to reduce interference and be more resistant to high temperature.
The tray sensor is made of precious metal alloy wire and has the advantages of high temperature resistance, oxidation resistance, and corrosion resistance.
The power supply, circulating heat dissipation part and the host are separated to reduce the influence of heat and vibration on the micro-thermal balance.
The host adopts the thermal insulation heating furnace to the chassis and the micro-thermal balance.
The furnace body adopts double insulation, which has better linearity; the furnace body has automatic lifting and lowering, which can quickly cool down; it has an exhaust gas outlet and can be used in conjunction with infrared, etc.
Technical Parameter
|
Model |
TGA200 |
|
Temperature range |
RT ~ 1250℃ |
|
Temperature resolution |
0.001℃ |
|
Temperature fluctuation |
±0.01℃ |
|
Heating/cooling rate |
0.1~100℃/min; -0.1~-40℃/min |
|
Temperature control method |
PID control, heating, cooling, constant temperature |
|
Weighing system measurement range |
0.01mg~3g, expandable to 50g |
|
Accuracy |
0.01mg |
|
Resolution |
0.01ug |
|
Atmosphere control |
Built-in two-way gas flowmeter, including two-way gas switching and flow control |
|
Software |
Intelligent software can automatically record TG curve for data processing, TG/DTG, mass, percentage coordinates can be switched arbitrarily; software has automatic adjustment function, according to the spectrum display, automatic extension, zoom |
|
Constant temperature time |
Arbitrary setting, standard configuration ≤600min |
Data test frequency can be selected in real time, 2s, 5s, 10s, etc.
The furnace has two modes of automatic lifting and manual lifting, which can quickly cool down; ≤15min, 1000℃ down to 50℃
External manual cooling device to isolate the drift of the weighing system from heat; temperature range -10~60℃
