Automatic Vertical Furnace Simultaneous Thermal Analyzer RT 1250°C
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Vertical Furnace Simultaneous Thermal Analyzer
,Automatic Simultaneous Thermal Analyzer
,Automatic Simultaneous Thermal Analysis

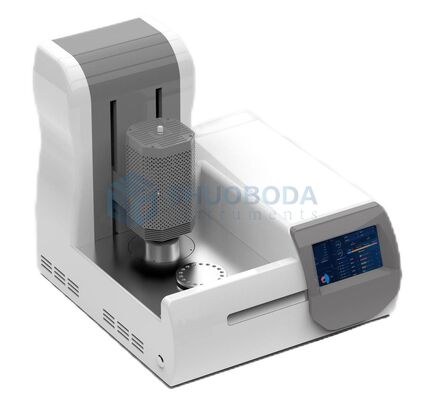

STA400 Vertical Furnace Simultaneous Thermal Analyzer
Introduction
STA400 Vertical Furnace Simultaneous Thermal Analyzer launched by SHUOBODA that can measure TG/DSC at the same time. The instrument adopts an automatic lifting furnace structure design, which makes it more convenient to test samples. It is also equipped with a digital flowmeter that can automatically control the size of the gas. The software has been upgraded and the analysis is more accurate. The instrument can be connected to infrared and has more powerful functions.
Test range
STA400 Vertical Furnace Simultaneous Thermal Analyzer can detect both tg/dsc information at the same time, and can measure a wide range, including: thermal stability, redox, decomposition behavior, corrosion research, decomposition kinetics analysis, melting/crystallization, solid phase transition, crystallinity, glass transition, etc.
Working principle
STA400 Vertical Furnace Simultaneous Thermal Analyzer can detect two kinds of information, tg/dsc, at the same time, and can measure a wide range of information, including: thermal stability, redox, decomposition behavior, corrosion research, decomposition kinetics analysis, melt crystallization, solid phase transition, crystallinity, glass transition, etc.
Main Features
Digital flow meter, automatic adjustment, high accuracy
One-button lifting, the furnace can automatically lift and lower for easy sample placement
Can be connected to infrared, one machine for multiple uses, more comprehensive analysis data
Technical Parameter
|
Model |
STA400 |
|
Temperature range |
RT -1250°C |
|
Temperature resolution |
0.001°C |
|
Temperature fluctuation |
±0.01°C |
|
Heating/cooling rate |
0.1~100°C/min -0.1~-40°C/min |
|
Temperature control method |
PID control, heating, cooling, constant temperature |
|
Weighing system measurement range |
0.01mg~3g, expandable to 50g |
|
Accuracy |
0.01mg |
|
Resolution |
0.01ug |
|
DSC range |
±1000mW |
|
DSC sensitivity |
0.0001mW |
|
Atmosphere control |
Built-in digital flow meter, automatic control of gas size |
|
Software |
Intelligent software can automatically record TG curves for data processing, TG/DTG, mass, and percentage coordinates can be switched arbitrarily; the software has an automatic adjustment function, automatically extending and zooming according to the spectrum display |
|
Constant temperature time |
Arbitrary setting; standard configuration <600min |
The data test frequency can be selected in real time, 2S, 5S, 10S, etc.
The furnace has two modes of automatic lifting and manual lifting, which can quickly cool down; ≤15min, 1000℃ down to 50℃.
An external water cooling device isolates the drift of the weighing system from heat; the temperature range is -10~60℃.
Performance advantages:
1. The furnace body heating adopts double-row winding of precious metal platinum-rhodium alloy wire to reduce interference and be more resistant to high temperature.
2. The tray sensor is made of precious metal alloy wire and has the advantages of high temperature resistance, oxidation resistance and corrosion resistance.
3. The power supply, circulating heat dissipation part and the host are separated to reduce the influence of heat and vibration on the micro-thermal balance.
4. The host adopts an isolated heating furnace body to reduce the thermal influence of the chassis and the micro-thermal balance.
5. The furnace body adopts double insulation, which has better linearity; the furnace body is automatically lifted and lowered, which can quickly cool down; it has an exhaust outlet and can be used with infrared, etc.
