CR39 Radon Thoron Monitor Conductive Plastic Radon Dosimeter
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 1000 sets/week |
CR39 Radon Dosimeter
,CR39 Radon Thoron Monitor
,Radon Thoron Monitor Plastic
RD-1 Radon Dosimeter
Product introduction

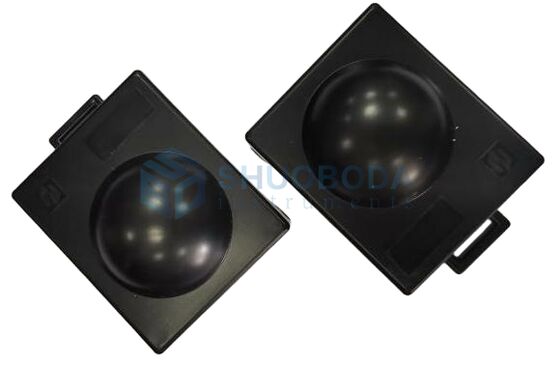

The RD-1 radon dosimeter is consists of radon CR39 detector with holder. It is made of conductive plastic (conductivity: 103Ω), the holder is a nearly hemispherical, passive diffusion-based radon collection chamber that allows for free exchange of air between the chamber and the outside. It has a handle for attaching a clamping tool, making it convenient to wear or hang on the spot.
Technical Specifications:
➢ Diffusion Chamber Dimensions: 50mm diameter, 20mm height;
➢ Diffusion Chamber Components: Base and Housing;
➢ Opening and Assembly: The NitonTrak can be opened manually from the edge of the base, without the need for specialized tools; it is reusable;
➢ Detector Capacity: The base can accommodate detectors measuring 25mm*25mm, 15mm*15mm, and 10mm*10mm; a built-in clip secures a CR39 detector.
Radon dosimeter assembly process demonstration diagram
Radon holder immersion test (immersion in water for 2 hours, water penetration into the cavity <1ml)
