Semi Automatic TLD Reader For TLD Chips
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 5000 sets/month |
Semi Automatic TLD Reader
,TLD Reader 220VAC
,50Hz Thermoluminescent Dosimeter Reader

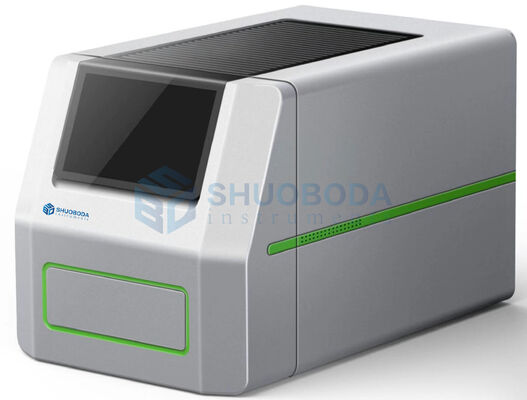

DA-3000A Semi-automatic TLD Reader
Product introduction
DA-3000A Semi-automatic TLD Reader is a highly reliable and cost-effective thermoluminescent reader that can effectively measure the radiation dose absorbed by the thermoluminescent material contained in the dose box.
The reader is integrated with an automatic sample introduction/ejection system, which can automatically read up to 120 dosage elements in one load, supporting multi-batch continuous measurement.
The system software integrates a result database, so operators can easily manage measurement data in various formats and generate measurement reports in specific formats.
Features:
Ø Automatic sample injection, ejection, measurement and data processing, one load can automatically and continuously measure 120 dosage chips and can read 100 chips per hour
Ø Accurate measurement, using wide range, high resolution, high stability, intelligent amplifier, and extended range
Ø Safe, reliable, and stable in operation. The core components, CU, and interface chips are all domestically produced devices, with strong substitutability and good supply guarantee capabilities.
Ø It is simple to operate and has a good human-machine interface for convenient and quick operation. It has built-in diagnostic function, running process display and voice prompt function.
Ø Rich interfaces, with standard S232/USB/RJ45 network interface
Technical parameters
|
physical parameters |
|
|
size and weight |
345*240*270mm; weight about 25kg |
|
shell material |
Sheet metal shell, spray-coated or anodized |
|
Environment |
-20℃~60℃, humility 10%~60% |
|
Power supply |
220VAC/50Hz |
|
operating parameters |
|
|
Operation mode |
Single sample testing |
|
Detection method |
Automatic continuous reading |
|
interactive mode |
Photomultiplier tube detection, analog signal amplification processing |
|
maintenance mode |
Equipped with touch screen human-machine interface and application software for simultaneous dual-work operation |
|
Adapted dose chips |
With self-diagnosis function; modular design facilitates quick replacement on site |
|
measuring ray |
γ, β, X, neutron rays |
|
Heating unit parameters |
|
|
Heating method |
Electrode heating, linear temperature rise, maximum temperature 500℃ |
|
Get temperature |
Room temperature ~500℃ can be set arbitrarily |
|
pre-heat temperature |
Room temperature ~500℃ can be set arbitrarily |
|
Heating rate |
0℃/s~50℃/s can be set arbitrarily |
|
Temperature control accuracy |
±1% |
|
Measurement unit parameters |
|
|
measurement method |
Photomultiplier tube (PMT), analog signal amplification 109 levels |
|
High voltage supply |
High voltage 0～1200V adjustable, high voltage stability: ±0.005% |
|
Detection unit cooling |
Semiconductor plus controlled refrigeration, the refrigeration temperature can be set |
|
Measuring range |
0.1μSv～12Sv; up to 300Sv (sensitized magnesium titanium sheet) |
|
Measurement resolution |
Under laboratory conditions, it can reach 0.1μSv after sufficient preheating. |
|
Measurement stability |
10 consecutive measurements after sufficient preheating, RSD≤1% |
|
dark current |
After preheating, multiple continuous readings RSD≤1% |
|
Reference light |
After preheating, multiple continuous readings RSD≤1% |
